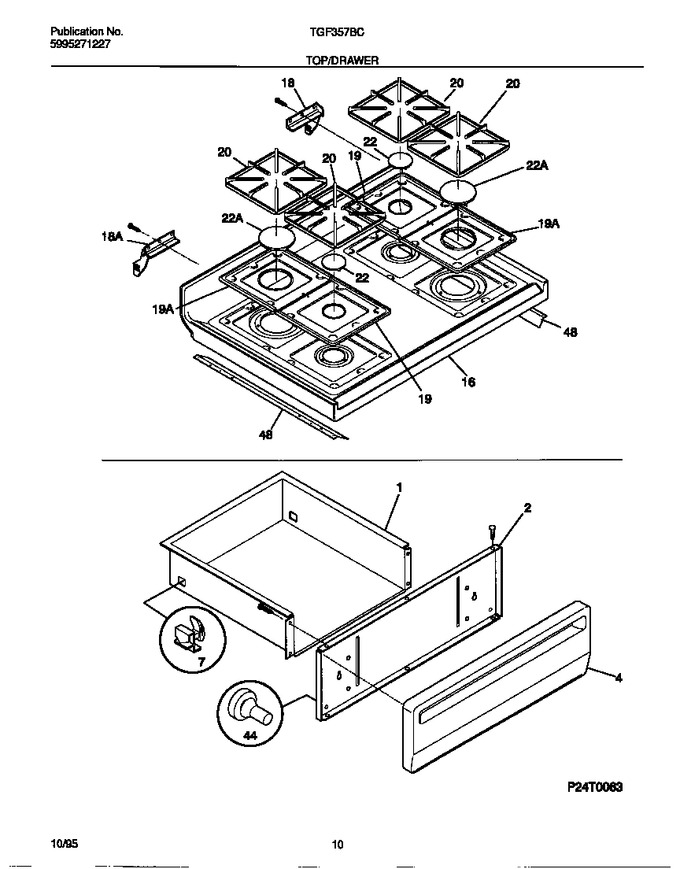

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303307709		Main Top, White		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
19	316011415		Pan-burner, Black, Small				$ 53.60
19	316011419		Pan-burner, Black, Large				$ 102.90
20	316085201		Grate, (4)		Appelez-nous	-
22	316011015		Cap-burner, Matte Black, Large, (2)		Appelez-nous	-
22	316011014		Cap-burner, Matte Black, Small, (2)		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316077501		Shield-maintop, (2)		Appelez-nous	-
*39685	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*39686	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*39687	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*39688	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
16A	5303271891		Gusset-top Mtg, Rh (not Illustrated)		Appelez-nous	-
16B	5303271892		Gusset-top Mtg, Lh (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
