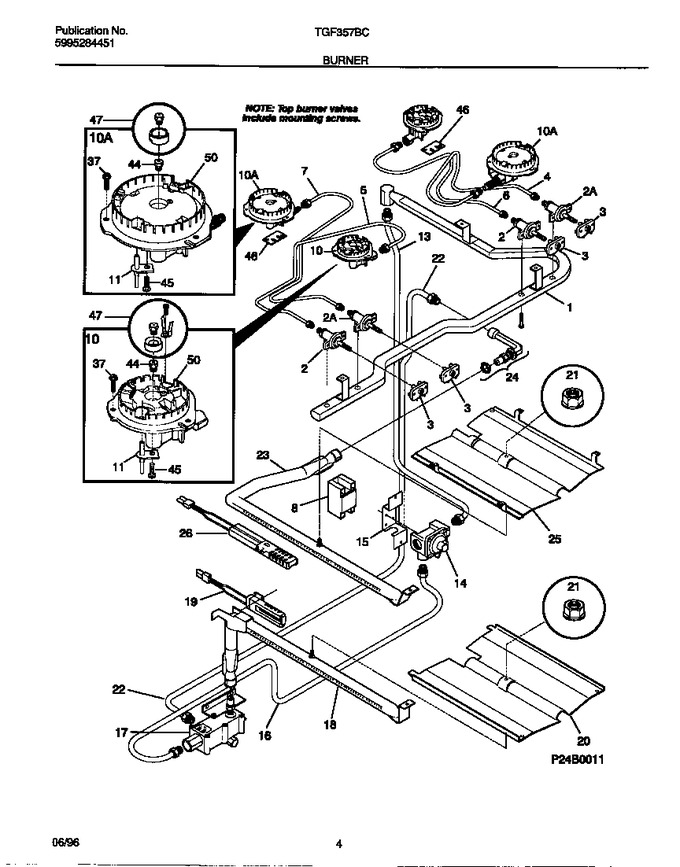

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316066201		Manifold Pipe				$ 65.47
2	5303935076		Valve-top Burner, Large, (2), W/screw		Appelez-nous	-
4	316059612		Tube-burner, Red, Rf				$ 88.25
5	316059613		Tube-burner, Green, Lf				$ 87.16
6	316059614		Tube-burner, Nat., Rr				$ 125.06
7	316059615		Tube-burner, Black, Lr				$ 106.32
10	5303935075		Burner Assy-top, Sealed, (2), Includes, 11, 37, 44, 45,		Appelez-nous	-
10	5303935025		Burner Assy-top, Sealed, Center, 9000 Btu, (2), Includes		Appelez-nous	-
11	316011200		Ignitor-top Burner, W/mtg Bracket			Immediately	$ 38.68
13	316065005		Tube, Aluminum, Rgltr To Manf, With Fittings				$ 91.51
14	316021104		Screw-regulator/brkt, Hex, 8-18 X 3/8, Nick, 3 (not Illu				$ 7.79
14	5304521339		Regulator,pressure   (Replaces: 316091706)			Immediately	$ 105.42
15	316091600		Bracket-regulator				$ 73.56
16	316065003		Tube-valve To Rgltr, 3/8				$ 126.42
17	5303208499		Valve-safety-dual			Immediately	$ 559.67
18	3131290		Burner-oven		Appelez-nous	-
19	5303935066		Igniter-oven   (Replaces: 5303131300)			Immediately	$ 59.58
20	3131284		Baffle-oven Burner				$ 155.77
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	316065002		Tube-valve To Mixer				$ 80.90
23	08067935		Burner-broiler				$ 142.59
24	316070400		Mixer Elbow		Appelez-nous	-
25	5303210379		Baffle-broiler				$ 175.88
26	5303935068		Ignitor-broiler   (Replaces: 5308067970)				$ 166.55
37	316069301		Screw-burner Mtg, Hex Washer Head, M3 X 0.50   (Replaces: 316069300)				$ 2.99
44	5303210090		Orifice-top Burner, Small, (2)				$ 54.18
45	316011100		Screw-igniter Mtg, Self-tapping, M3 X 5.8, (4)				$ 3.41
46	316074700		Plate-burner Tube		Appelez-nous	-
47	5303286386		Lp-conversion Kit				$ 143.29
2A	316050600		Valve-top Burner, With Mtg Screws		Appelez-nous	-
2B	316048200		Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, (4), W/gasket (not Illustrated)		Appelez-nous	-
3A	316032000		Switch-igniter, (4)				$ 58.70
3B	5303935040		Switch Harness Terminal Kit (not-illustrated)				$ 49.67
50A	5303935026		Burner-top, Small, (2) Includes, 37		Appelez-nous	-
50B	316090201		Burner-top, Large, (2)		Appelez-nous	-
8A	5304505695		Spark Module   (Replaces: 5303280394)			Immediately	$ 68.16
8B	5303289034		Harness-wiring, Module/igniter (not Illustrated)				$ 188.84
