SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

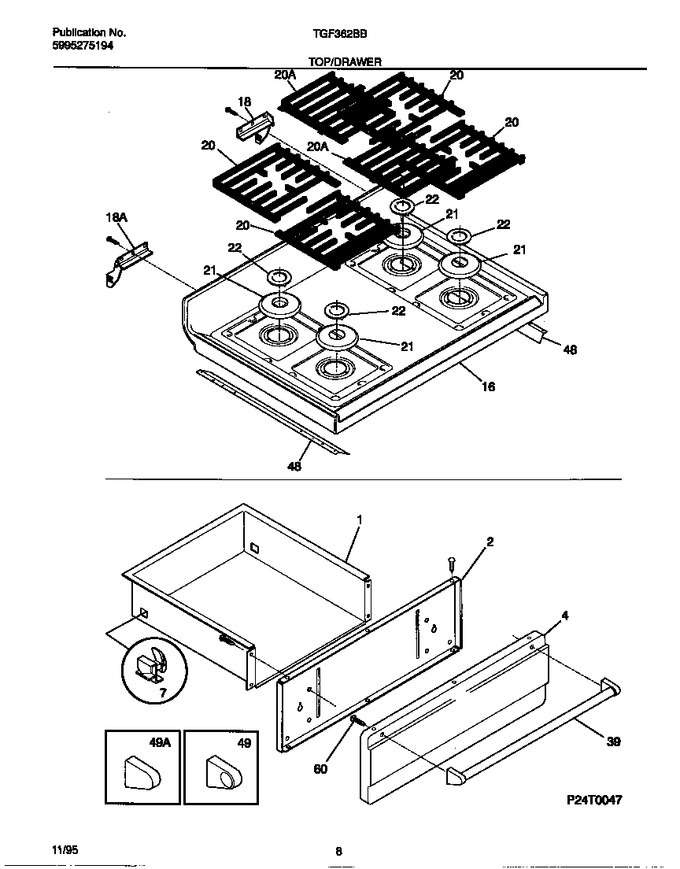

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	316063503		Shield-panel		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316056209		Panel-drawer, Black		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303291521		Main, Top Black		Appelez-nous	-
16	5303271891		Gusset-top Mtg, Rh (not Illustrated)		Appelez-nous	-
16	5303271892		Gusset-top Mtg, Lh (not Illustrated)		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
20	316069900		Grate, Sides, (4)		Appelez-nous	-
20	316070000		Grate, Center, (2)		Appelez-nous	-
21	316011300		Trim Ring-burner, Black, Small				$ 68.59
22	316011003		Cap-burner, Gray, (4)		Appelez-nous	-
39	316008306		Handle Ov Door, Stainless		Appelez-nous	-
48	316075001		Shield-maintop, (2)		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
60	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
*74087	3131903		Bumper				$ 55.36
*74088	3018702		Plug-button,glide ,(4)		Appelez-nous	-
*74089	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*74090	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*74091	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*74092	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
