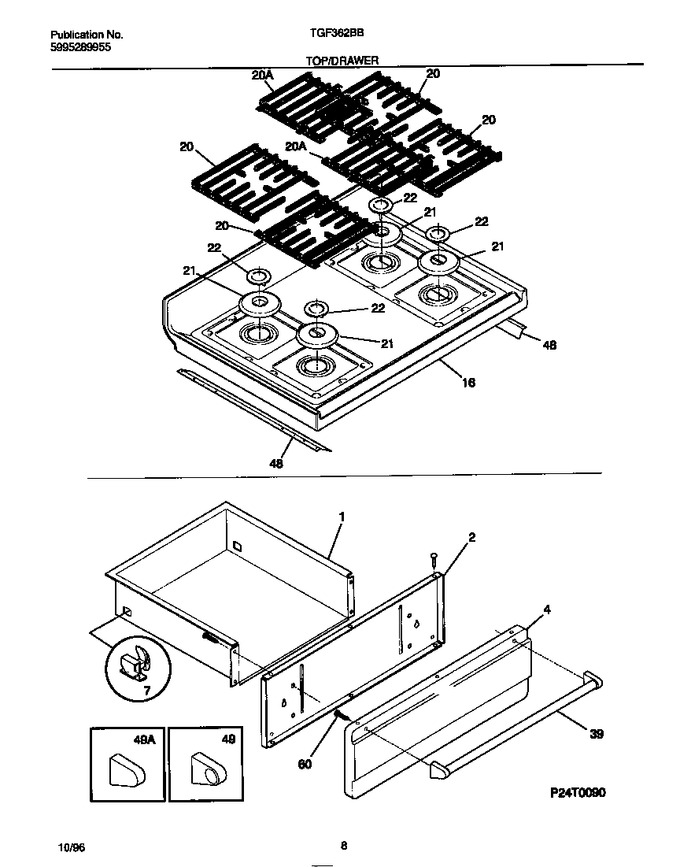

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	316063503		Shield-panel		Appelez-nous	-
4	316056209		Panel-drawer, Black		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303271892		Gusset-top Mtg, Lh (not Illustrated)		Appelez-nous	-
16	5303291521		Main, Top Black		Appelez-nous	-
16	5303271891		Gusset-top Mtg, Rh (not Illustrated)		Appelez-nous	-
20	316070000		Grate, Center, (2)		Appelez-nous	-
20	316069900		Grate, Sides, (4)		Appelez-nous	-
21	316011300		Trim Ring-burner, Black, Small, (4)				$ 68.59
22	316011003		Cap-burner, Gray, Small		Appelez-nous	-
39	316008306		Handle Ov Door, Stainless		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
60	316089500		Screw, Drawer Handle 10-16 X .486, Safety Valve, (2)				$ 13.46
*54926	3131903		Bumper				$ 55.36
*54927	3018702		Plug-button,glide ,(4)		Appelez-nous	-
*54928	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*54929	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*54930	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*54931	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*54932	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
