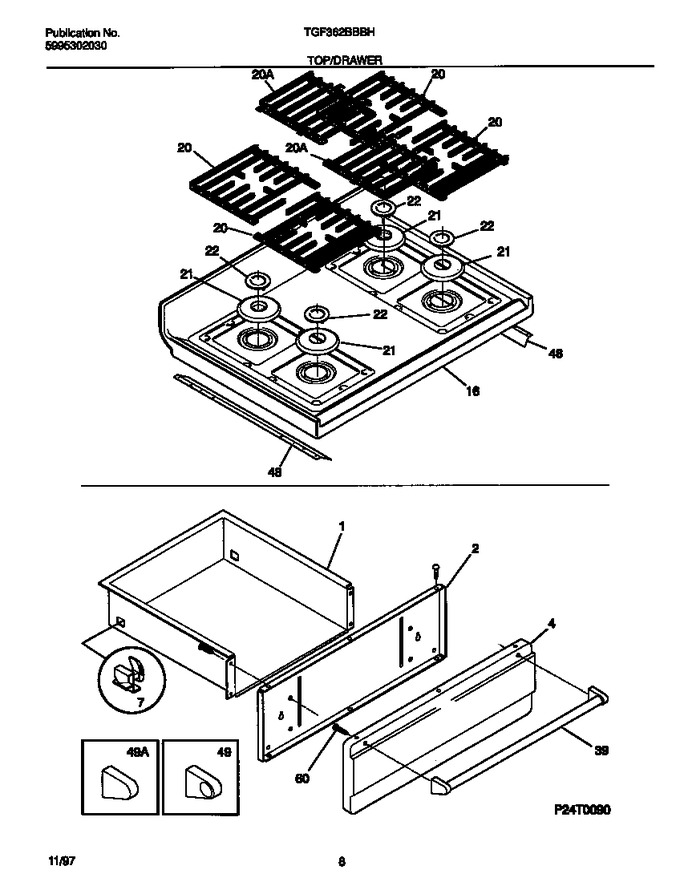

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	316063503		Shield-panel		Appelez-nous	-
4	316056209		Panel-drawer, Black		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303291521		Main, Top Black		Appelez-nous	-
16	5303271891		Gusset-top Mtg, Rh (not Illustrated)		Appelez-nous	-
16	5303271892		Gusset-top Mtg, Lh (not Illustrated)		Appelez-nous	-
20	316069901		Grate, (4)		Appelez-nous	-
20	316070001		Grate, Center, (2)		Appelez-nous	-
21	316011300		Trim Ring-burner, Black, Small				$ 68.59
22	316011003		Cap-burner, Gray, Small, (2)		Appelez-nous	-
39	316008306		Handle Ov Door, Stainless		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
60	316001001		Screw-handle Mtg, Wafer Head, 10-24 X 3.375		Appelez-nous	-
*96287	3131903		Bumper				$ 55.36
*96288	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-
*96289	316077401		Shield-maintop		Appelez-nous	-
*96290	3018702		Plug-button,glide ,(4)		Appelez-nous	-
*96291	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*96292	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*96293	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*96294	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*96295	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*96296	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
