02 - Top And Console
03 - Drive
04 - Water Pump

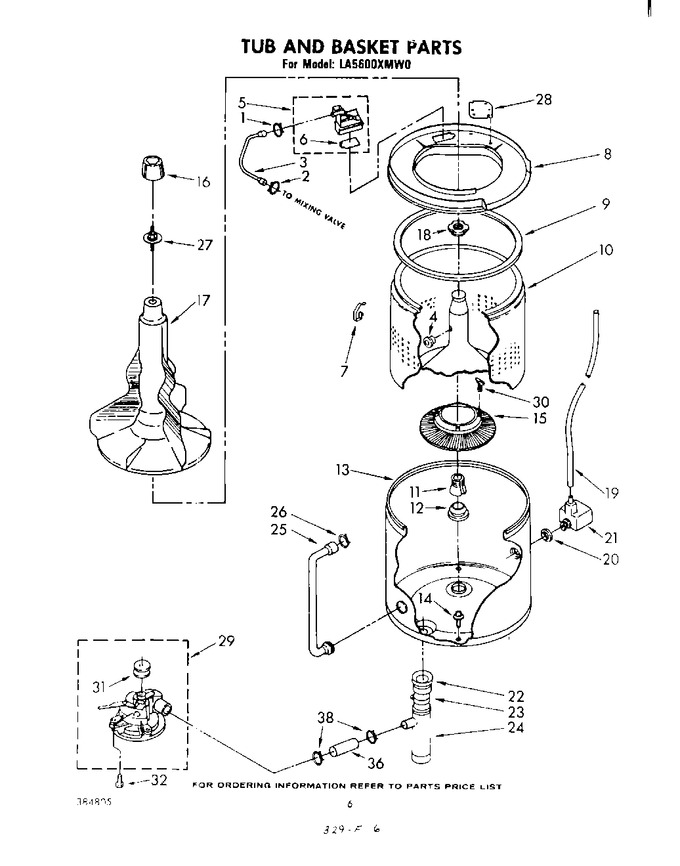

05 - Tub And Basket
06 - Cabinet
07 - Miscellaneous , Literature And Optional
08 - Gearcase
09 - Basket Drive And Brake
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP596669 | Clamp, Hose (Replaces: 272847) |
|
Immediately | $ 7.56 | ||||
| 2 | WP596669 | Clamp, Hose (Replaces: 272846) |
|
Immediately | $ 7.56 | ||||
| 3 | 356349 | Hose, Water Inlet |
|
- | |||||
| 4 | 21265 | Stopper (2) |
|
- | |||||
| 5 | 366072 | Inlet, Water |
|
- | |||||
| 6 | 355584 | Flapper |
|
- | |||||
| 7 | 359763 | Clip, Tub Ring (4) |
|
- | |||||
| 8 | 381971 | Ring, Tub (includes Illus. 28) |
|
- | |||||
| 9 | 383553 | Seal, Tub Ring |
|
- | |||||
| 10 | 383960 | Basket |
|
- | |||||
| 11 | 96384 | Block, Drive |
|
$ 32.89 | |||||
| 12 | W10814296 | Gasket, Centerpost (Replaces: 96690) |
|
Immediately | $ 8.26 | ||||
| 13 | 384125 | Tub |
|
- | |||||
| 14 | WP358237 | Screw & Washer, Tub (4) (Replaces: 370571) |
|
Immediately | $ 7.97 | ||||
| 15 | 383719 | Filter, Element (includes Illus. 30) |
|
- | |||||
| 16 | 358431 | Agitator Cap |
|
- | |||||
| 17 | 383952 | Agitator |
|
- | |||||
| 18 | WP21366 | Locknut (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 19 | WP353244 | Hose, Pressure Switch (Replaces: 353405) |
|
Immediately | $ 53.94 | ||||
| 20 | 351830 | Seal |
|
$ 5.84 | |||||
| 21 | 360804 | Air Dome Assembly |
|
- | |||||
| 22 | 93553 | Hose, Tub Outlet |
|
- | |||||
| 23 | 9421321 | Clamp, Hose |
|
- | |||||
| 24 | 84091 | Manifold Assembly |
|
- | |||||
| 25 | 352818 | Hose, Bleach |
|
- | |||||
| 26 | WP596669 | Clamp, Hose (Replaces: 287859) |
|
Immediately | $ 7.56 | ||||
| 27 | 358440 | Stud & Seal, Agitator |
|
- | |||||
| 28 | 355852 | Plate, Snubber |
|
- | |||||
| 29 | 383957 | Pump (complete) (refer To Page 5 For Further Breakdown) |
|
- | |||||
| 30 | 383718 | Clip, Filter Element (4) |
|
- | |||||
| 31 | 359630 | Pulley, Pump |
|
- | |||||
| 32 | 386011 | Screw, 5/16-18 X 7/8 (2) (p\ump\ T\o G\earcase) (Replaces: 96867) |
|
- | |||||
| 36 | DE81-06162A | Hose, Pump To Manifold (Replaces: 92231) |
|
$ 78.75 | |||||
| 38 | WP285655 | Clamp, Hose (Replaces: 272858) |
|
Immediately | $ 7.55 |
