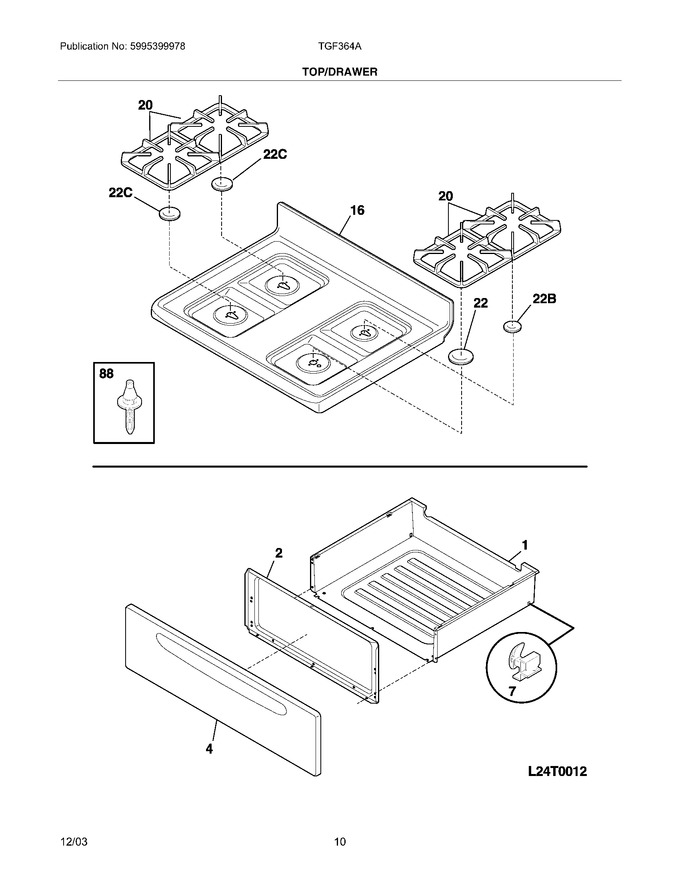

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011503		Drawer				$ 131.51
2	316231400		Liner,drawer		Appelez-nous	-
4	316231205		Panel-drawer,white				$ 51.92
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316202322		Main Top,white				$ 377.00
20	316213801		Grate,gray		Appelez-nous	-
22	316213601		Cap,12k Burner ,gray				$ 138.66
88	316099500		Pin,guide ,(2)				$ 6.53
22B	316206601		Cap,5k Burner ,gray				$ 104.11
22C	316213501		Cap,9.5k Burner ,gray				$ 104.05
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
