SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

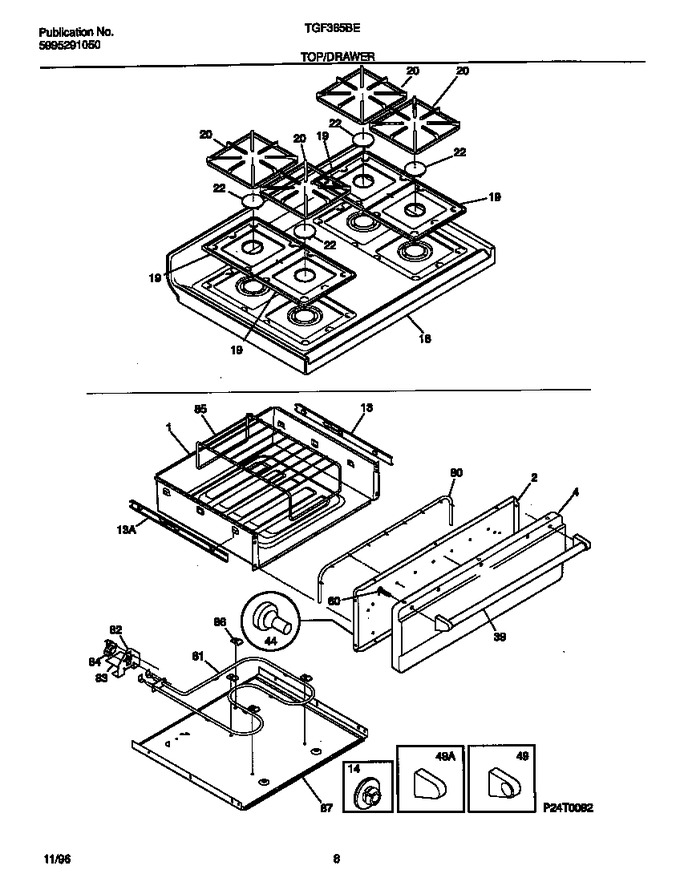

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316094601		Drawer-warmer		Appelez-nous	-
2	316092901		Liner, Drawer		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
13	316096501		Channel-drawer, Lh		Appelez-nous	-
13	316096500		Channel-drawer, Rh		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
16	5303301547		Main Top, Almond		Appelez-nous	-
19	316011401		Pan-burner				$ 20.58
20	316085201		Grate, (4)		Appelez-nous	-
22	316010901		Cap-burner, Black, (4)				$ 69.01
39	316019507		Handle-drawer, Almond		Appelez-nous	-
39	3131387		Fastener-spacer, Push-in Nut, Nylon (not Illustrated)		Appelez-nous	-
44	3131903		Bumper				$ 55.36
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
60	316089500		Screw, Drawer Handle 10-16 X .486, Safety Valve, (2)				$ 13.46
80	316093000		Seal-door, Warmer Drawer		Appelez-nous	-
81	316093100		Element, Warmer Drawer		Appelez-nous	-
82	316093200		Bracket-mounting, Warmer Element		Appelez-nous	-
83	316093300		Shield-terminal, Warmer		Appelez-nous	-
84	316093500		Thermo Disc, Warmer				$ 138.39
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091902		Base-warmer		Appelez-nous	-
*79683	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*79684	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*79685	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*79686	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
