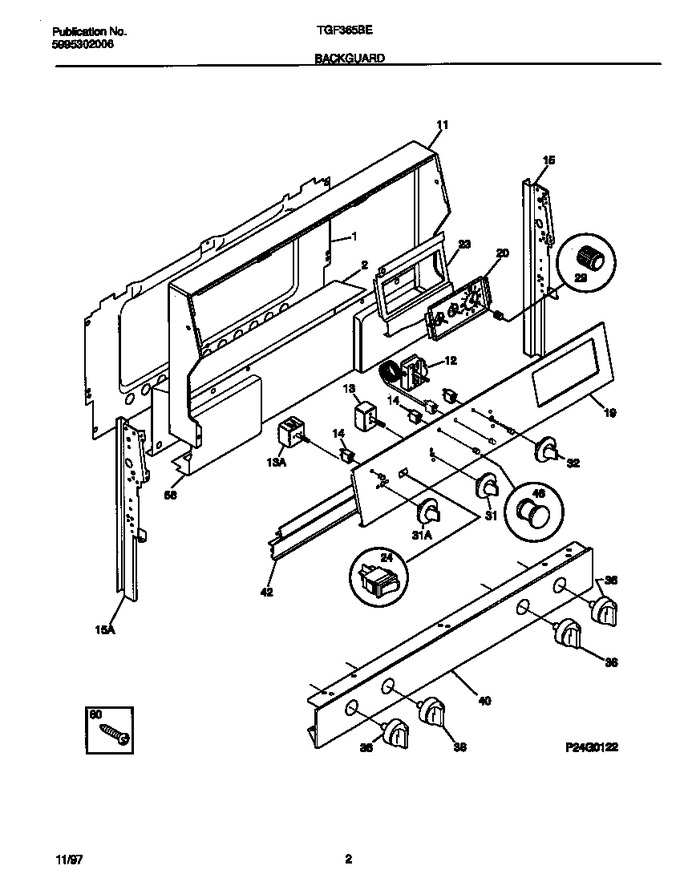

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316051600		Shield,backguard ,inner		Appelez-nous	-
11	316061846		Trim-wrapper, Black		Appelez-nous	-
12	316028600		Thermostat-oven		Appelez-nous	-
13	5304508926		Switch-warmer, Infinite, Drawer/zone   (Replaces: 316095500)			Immediately	$ 84.18
13	316073300		Switch-selector				$ 154.25
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316082614		Panel-control, Metal		Appelez-nous	-
20	316017408		Clock/timer, Analog 3 Stem		Appelez-nous	-
23	316079000		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
29	316029008		Knob-clock				$ 40.16
31	316087259		Knob-warmer, Black		Appelez-nous	-
31	316087237		Knob-selector		Appelez-nous	-
32	316087238		Knob-thermostat		Appelez-nous	-
36	316023020		Knob-control, (4)		Appelez-nous	-
40	316086817		Panel-manifold		Appelez-nous	-
42	316083300		Trim-vent		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red, (2)		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
*93000	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*93001	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*93002	316001444		Harness-wiring, Backguard		Appelez-nous	-
