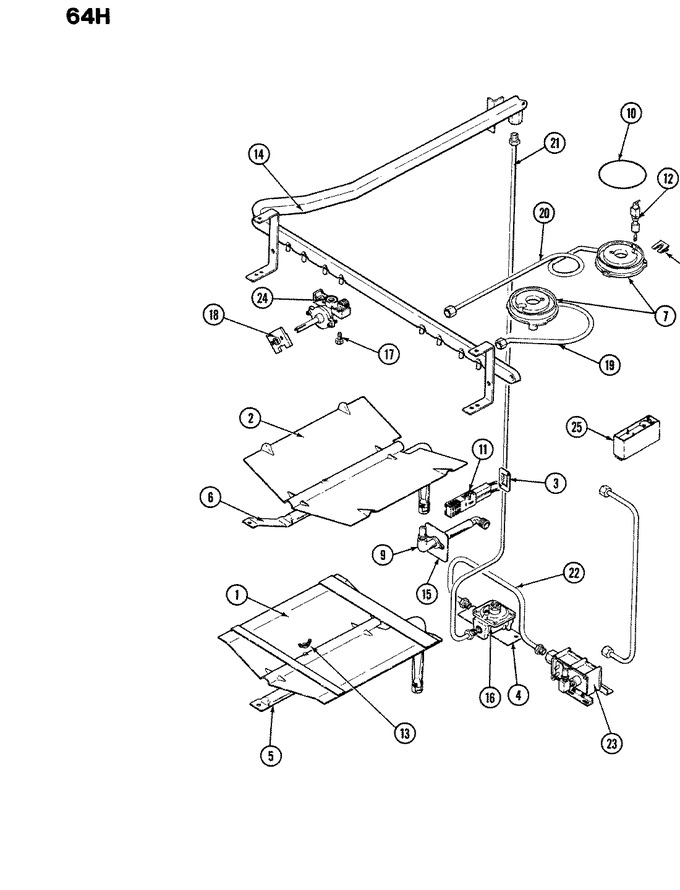

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601W184-19 | Baffle, Bake | 28 |
|
- | ||||
| 1 | 3601W184-15 | Baffle | 01 |
|
- | ||||
| 2 | 3601F181-45 | Baffle, Oven Burner | 01 |
|
- | ||||
| 3 | 3801F179-45 | Bracket, Burner Lighter | 01 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 4 | 3801F191-45 | Bracket, Regulator Mtg | 01 |
|
- | ||||
| 4 | 3801F205-45 | Bracket, Module Support | 04 |
|
- | ||||
| 4 | 3801F226-45 | Bracket, Spark Module | 17 |
|
- | ||||
| 4 | 3801F180-45 | Bracket, Spark Module | 01 |
|
- | ||||
| 4 | 3801F303-45 | Bracket, Spark Module | 38 |
|
- | ||||
| 5 | 3403A015-45 | Burner Oven | 22 |
|
- | ||||
| 5 | 7505P101-60 | Burner | 01 |
|
- | ||||
| 5 | 3403D027-45 | Burner, Oven | 28 |
|
- | ||||
| 6 | 3403D028-45 | Burner, Broil | 28 |
|
- | ||||
| 6 | 3403A016-45 | Burner Assy Broil | 22 |
|
- | ||||
| 6 | 7505P100-60 | Burner, Bake & Broil | 01 |
|
- | ||||
| 7 | 7505P187-60 | Burner, Top | 15 |
|
- | ||||
| 7 | 3403A018-60 | Burner Assy | 09 |
|
- | ||||
| 7 | W10127325 | Burner, Top Complete Kit | 01 |
|
- | ||||
| 8 | 7112P072-60 | Clip | 01 |
|
- | ||||
| 9 | 7507P028-60 | Fitting, Broil Burner | 01 |
|
- | ||||
| 10 | 7201P037-60 | Gasket, Burner | 01 |
|
- | ||||
| 11 | 12400035 | Igniter, Bake Burner (Replaces: 7432P052-60) | 01 |
|
Immediately | $ 60.44 | |||
| 11 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 13 |
|
Immediately | $ 60.44 | |||
| 12 | 7432P053-60 | Igniter, Burner | 01 |
|
- | ||||
| 13 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 13 | 7509P034-60 | Orifice, Sealed Burner-nat | 01 |
|
- | ||||
| 14 | 7513P092-60 | Pipe, Manifold | 01 |
|
- | ||||
| 14 | 7513P117-60 | Pipe, Manifold | 22 |
|
- | ||||
| 15 | 3605F019-45 | Plate, Fitting | 01 |
|
- | ||||
| 15 | WP3387230 | Screw, No.10 X .5 Tya (Replaces: 7101P274-60) | 01 |
|
Immediately | $ 7.69 | |||
| 16 | 2014F001-00 | Ring, Black | 01 |
|
- | ||||
| 16 | 7510P040-60 | Regulator | 26 |
|
- | ||||
| 16 | 7510P028-60 | Regulator, Pressure | 01 |
|
- | ||||
| 16 | 7510P048-60 | Regulator, Pressure | 36 |
|
- | ||||
| 17 | 3411F006-34 | Mixer Air Oven Burner | 01 |
|
- | ||||
| 17 | 7403P187-60 | Switch, Hi Limit | 01 |
|
- | ||||
| 17 | 7403P004-60 | Switch, Therm Lock | 01 |
|
- | ||||
| 17 | 7101P296-60 | Screw | 22 |
|
- | ||||
| 17 | 7101P256-60 | Screw | 01 |
|
- | ||||
| 17 | 7214P003-60 | Sleeve | 01 |
|
- | ||||
| 17 | 7101P043-60 | Screw, Control Valve | 01 |
|
- | ||||
| 17 | 3411F006-35 | Mixer, Air | 22 |
|
- | ||||
| 17 | 3807F219-51 | Support, Therm Disc | 01 |
|
- | ||||
| 18 | 7403P235-60 | Switch, Lighter Burner | 22 |
|
- | ||||
| 18 | 7403P286-60 | Switch | 33 |
|
- | ||||
| 18 | 7403P259-60 | Switch | 30 |
|
- | ||||
| 18 | WP7403P190-60 | Switch, Burner (Replaces: 7403P190-60) | 01 |
|
$ 118.82 | ||||
| 19 | 7506P104-60 | Tube, Front Burner | 01 |
|
- | ||||
| 20 | 7506P105-60 | Tube, Rear Burner | 01 |
|
- | ||||
| 21 | 7506P101-60 | Tube, Manifold Feed----na | 01 |
|
- | ||||
| 22 | 7506P075-60 | Tube, Regulator----na | 01 |
|
- | ||||
| 23 | 7501P034-60 | Valve, Broil & Bake | 01 |
|
- | ||||
| 23 | 7501P095-60 | Valve, Broil & Bake - Nat | 22 |
|
- | ||||
| 24 | 5110A825-60 | Wire, Igniter Rear | 01 |
|
- | ||||
| 24 | 5110A824-60 | Wire, Igniter Front | 01 |
|
- | ||||
| 24 | 7502P230-60 | Valve | 22 |
|
- | ||||
| 24 | 7502P118-60 | Valve | 01 |
|
- | ||||
| 25 | 7431P016-60 | Module, Spark | 04 |
|
- | ||||
| 25 | 7431P006-60 | Module, Spark | 01 |
|
- | ||||
| 25 | 12001596 | Module, Spark (Replaces: 7431P017-60) | 17 |
|
Immediately | $ 85.93 | |||
| 26 | 5415A016-60 | Lp Conversion Kit | 01 |
|
- | ||||
| 26 | 5415A015-60 | + Nat. Gas Conversion Kit | 01 |
|
- |
