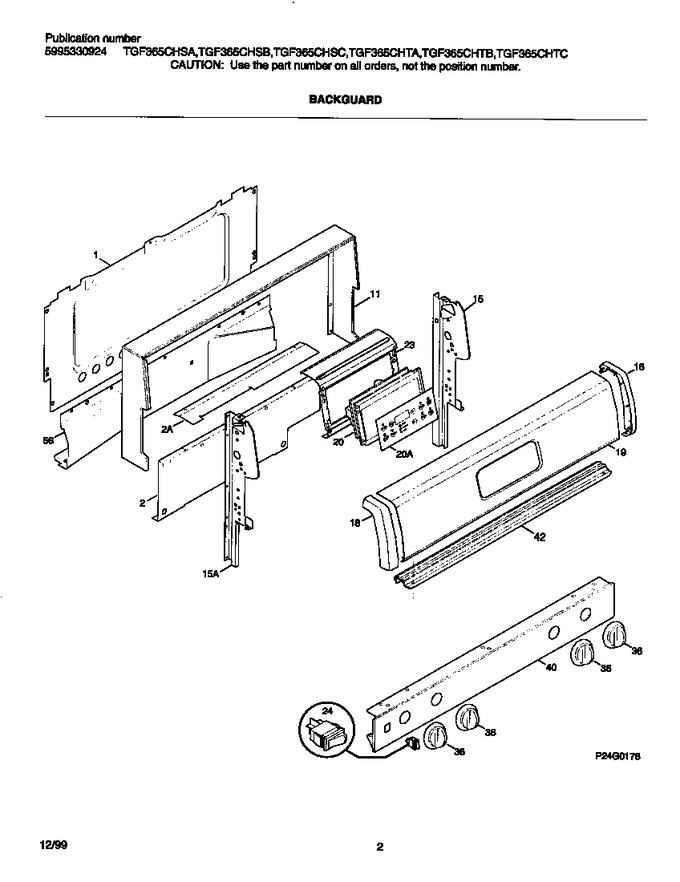

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303288505		655f Shield-rear Wall B/g,1		Appelez-nous	-
2	316053803		Shield-bg Top Inner,2		Appelez-nous	-
11	316061857		Trim-wrapper,textured ,white		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
18	316115201		Cap-end,almond		Appelez-nous	-
18	316115200		Cap-end,almond		Appelez-nous	-
19	316115009		Panel-bg G Tapp Tl Ta Wht Cm,19		Appelez-nous	-
20	316101000		Clock/timer, Electronic		Appelez-nous	-
23	316115101		Bracket Timer		Appelez-nous	-
24	316083103		Switch-rocker, Oven Light, White, Rh				$ 85.31
36	316109503		Knob-top Valve,white		Appelez-nous	-
40	316086857		Panel-manifold Wht W/sw Solid,40		Appelez-nous	-
42	316055203		Trim-extrusion		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
*33602	316077401		Shield-maintop,(2)		Appelez-nous	-
*33603	316001465		Wiring Harness,backguard		Appelez-nous	-
*33604	316002171		Diagram-wiring		Appelez-nous	-
*33605	316519700		Screw,cup Pt ,8-18 X 0.375 ,hinge ,   (Replaces: 316021108)				$ 10.02
*33606	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*33607	316021122		Screw,8-18 X 0.375 ,truss Hd White		Appelez-nous	-
*33609	316105822		Installation Instr		Appelez-nous	-
*33610	316112500		Template, Anti-tip Bracket				$ 3.55
*33611	316101525		Overlay-clock		Appelez-nous	-
*33612	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
