SELECT A DIAGRAM

01 - Cover

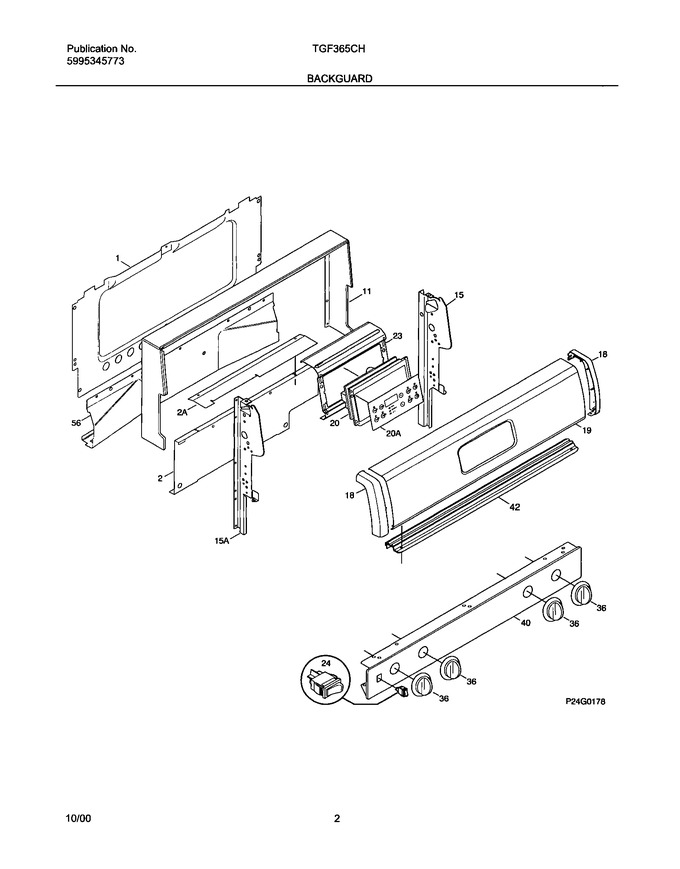

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028700		Shield-backguard,galv ,rear Wall		Appelez-nous	-
2	316051600		Shield,backguard ,inner		Appelez-nous	-
11	316061857		Trim-wrapper,white ,textured		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
18	5303935172		End Cap,white ,rh & Lh		Appelez-nous	-
19	316115009		Panel-control,white		Appelez-nous	-
23	316131501		Bracket-timer		Appelez-nous	-
36	316109513		Knob-top Valve,white				$ 47.25
40	316086857		Panel-manifold,white		Appelez-nous	-
42	316055203		Trim-extrusion,chrome		Appelez-nous	-
55	316107800		Shield,flue		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
15A	316023109		Support,backguard ,lh		Appelez-nous	-
20A	316101525		Overlay-clock,white		Appelez-nous	-
2A	316053803		Shield-backguard,inner Top		Appelez-nous	-
F20	316131600		Clock/timer,electronic				$ 296.99
F24	316083103		Switch-rocker, Oven Light, White, Rh, (1)				$ 85.31
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316001465		Wiring Harness,backguard		Appelez-nous	-
NI	316021122		Screw,truss Hd `8-18 X 0.375 ,white		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
