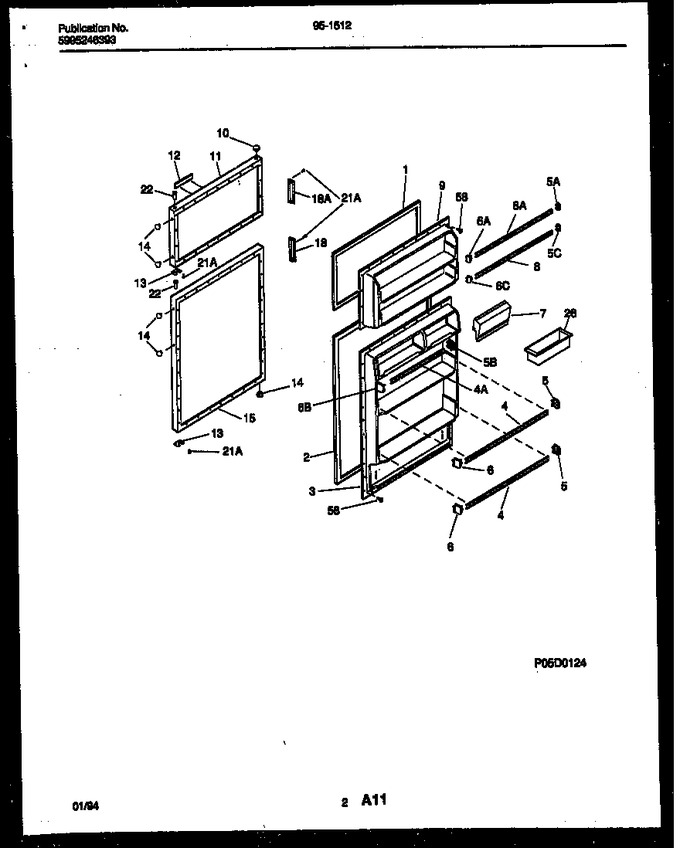

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308007123		Gasket-frzr Door, Magnetic, White				$ 188.54
2	218730603		Gasket-refr Door, Magnetic, White   (Replaces: 5318680311)				$ 62.07
3	5303284098		Panel-inner Door, Refr		Appelez-nous	-
4	5303272143		Rack-door, Wide, (2)		Appelez-nous	-
5	3206150		Support, Door Rack, Rh				$ 12.58
6	3206151		Support-door Rack, Lh		Appelez-nous	-
7	5303288917		Door-dairy		Appelez-nous	-
8	5303272150		Rack-door, Wide, Frzr		Appelez-nous	-
9	5303276517		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	3916563		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215134401		Label-nameplate, White/gray Ltrs		Appelez-nous	-
13	5308000255		Door Stop				$ 42.20
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	3916558		Panel-refr Door, White		Appelez-nous	-
18	5303273079		Handle-door, White		Appelez-nous	-
21	5308011745		Screw				$ 10.38
22	5308012007		Bearing-hinge		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
58	5308002748		Screw		Appelez-nous	-
*95026	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
18A	5303273081		Handle-door, White		Appelez-nous	-
4A	5303276155		Rack-door, Narrow, Short		Appelez-nous	-
5A	3206165		Support-door Rack, Rh			Immediately	$ 8.19
5B	3206156		Support-door Rack, Rh		Appelez-nous	-
5C	3206161		Support-door Rack, Rh		Appelez-nous	-
6A	3206166		Support-door Rack, Lh			Immediately	$ 9.93
6B	3206157		Support-door Rack, Lh		Appelez-nous	-
6C	3206162		Support-door Rack, Lh		Appelez-nous	-
7A	5303001380		Screw		Appelez-nous	-
8A	5303272149		Rack-door, Narrow, Frzr		Appelez-nous	-
