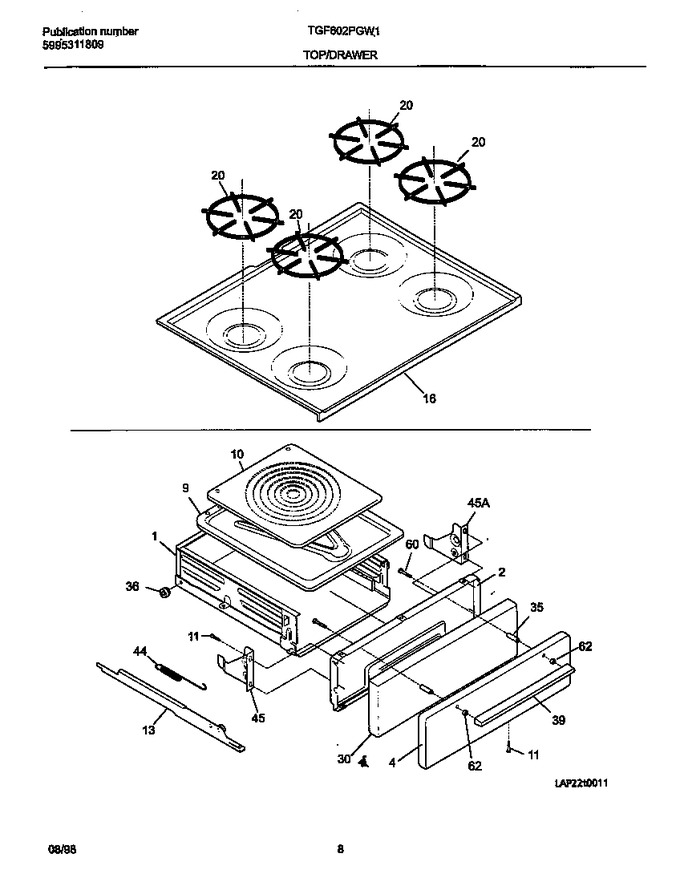

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107000		Drawer,broiler		Appelez-nous	-
2	318135100		Liner-low Broil		Appelez-nous	-
4	5303281361		Panel-drawer		Appelez-nous	-
9	318126200		Pan-broiler		Appelez-nous	-
10	318126300		Insert-broiler Pan		Appelez-nous	-
11	5303131801		Screw		Appelez-nous	-
13	318136701		Channel-drawer,rh		Appelez-nous	-
16	318159401		Main Top		Appelez-nous	-
20	5303272274		Grate, (4)		Appelez-nous	-
30	3017184		Insulation, Broiler Drawer		Appelez-nous	-
35	5303310504		Spacer-handle		Appelez-nous	-
36	5303935079		Roller		Appelez-nous	-
39	5308008085		Handle,drawer		Appelez-nous	-
44	318088300		Spring-broiler		Appelez-nous	-
45	318024400		Hinge-broiler,rh		Appelez-nous	-
45	318024401		Hinge-broiler,lh		Appelez-nous	-
60	5303310510		Screw				$ 14.18
62	154079601		Nut   (Replaces: 3201885)				$ 0.41
*40587	318136700		Channel-drawer,lh		Appelez-nous	-
*40588	5303300414		Spacer, Cork & Rubber				$ 13.18

    View Diagram in Separate Window       Print Part List
