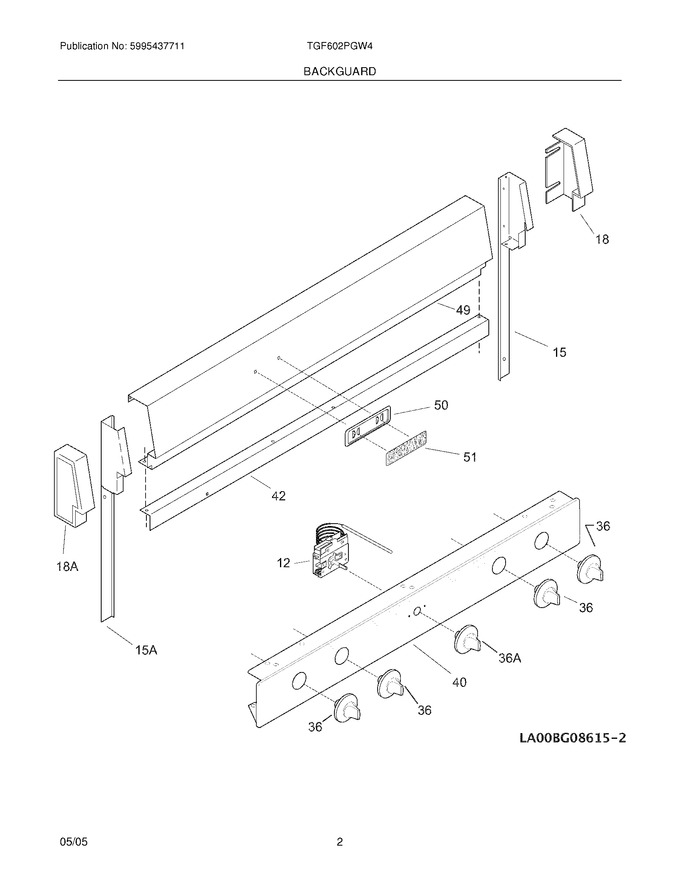

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	318162100		Support-backguard,rh		Appelez-nous	-
18	318254700		End Cap,black ,rh		Appelez-nous	-
36	318016209		Knob,control		Appelez-nous	-
40	318005301		Panel-manifold,40		Appelez-nous	-
42	318169401		Trim-bottom,black		Appelez-nous	-
49	318030811		Panel,backsplash		Appelez-nous	-
50	318146602		Frame,nameplate ,black				$ 5.40
51	316095401		Nameplate,tappan ,white		Appelez-nous	-
15A	318162101		Support-backguard,lh		Appelez-nous	-
18A	318254701		End Cap,black ,lh		Appelez-nous	-
36A	318016823		Knob,thermostat		Appelez-nous	-
F12	318059206		Thermostat-oven		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
