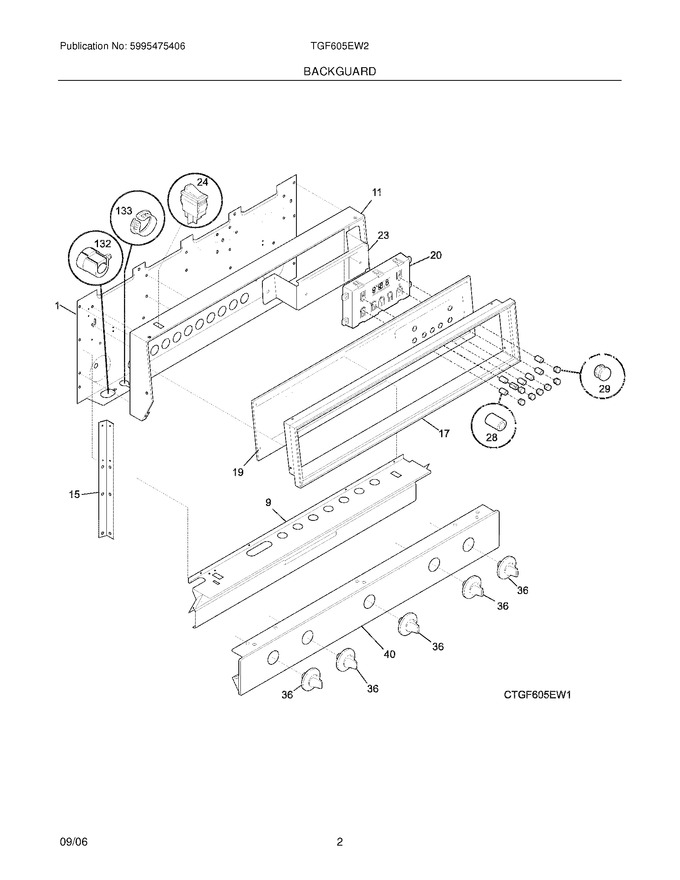

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318022401		Shield,backguard ,rear Wall		Appelez-nous	-
9	318162003		Shield-insulation		Appelez-nous	-
11	5303317082		Trim,control Panel		Appelez-nous	-
15	5308013296		Support,backguard ,(2)		Appelez-nous	-
17	318249700		Trim,control Panel		Appelez-nous	-
19	318001011		Panel,control ,glass ,black		Appelez-nous	-
23	318015314		Bracket,clock Mtg		Appelez-nous	-
28	5304410865		Tube,timer Knob				$ 8.51
29	318017711		Knob,clock/timer ,black				$ 35.75
36	318016209		Knob,control		Appelez-nous	-
40	318005300		Panel-manifold		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
133	08008009		Bushing,side Panel ,nylon ,rh ,snap		Appelez-nous	-
F20	316455460		Clock/timer,electronic ,es100		Appelez-nous	-
F24	5308015487		Switch,oven Light ,rocker				$ 61.43
NI	318224709		Wiring Harness,backguard		Appelez-nous	-
NI	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5303311528		Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
