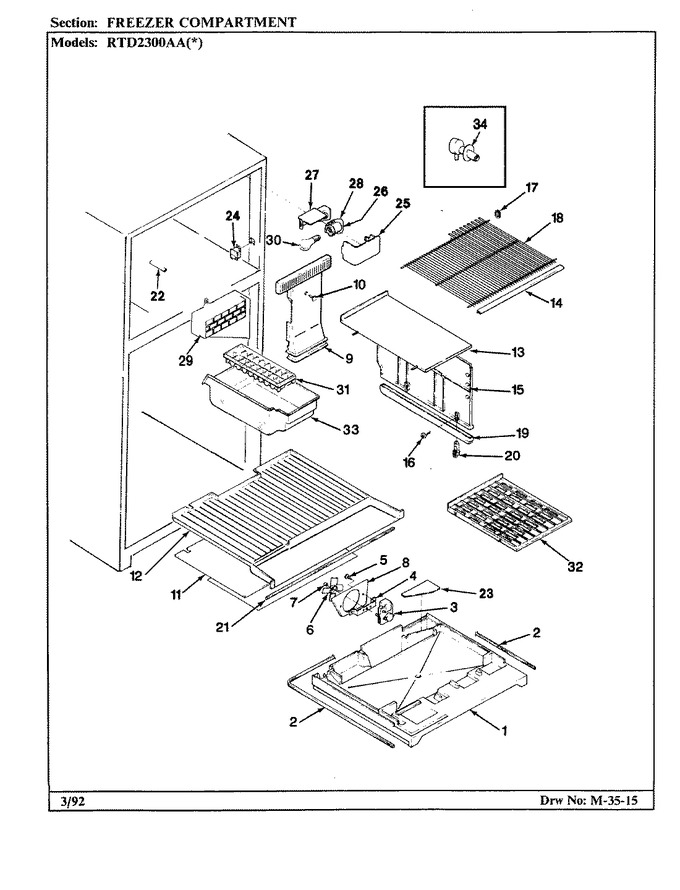

01 - Freezer Compartment
02 - Fresh Food Compartment
03 - Inner Door
04 - Optional Ice Maker Kit (rae3100aax)
05 - Shelves & Accessories
06 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67521-3 | Tray, Foam Mull |
|
- | |||||
| 2 | 68866-4 | Foam Seal 84`` |
|
- | |||||
| 2 | 67730-1 | Seal, Front Corner |
|
- | |||||
| 3 | WP61004888 | Motor, Evaporator Fan (Replaces: 54482-10) |
|
Immediately | $ 104.99 | ||||
| 3 | 406062-1 | Screw |
|
- | |||||
| 4 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 5 | 400015-12 | Screw |
|
- | |||||
| 6 | 64359-1 | Blade, Evaporator Fan |
|
- | |||||
| 7 | 420092-900 | Washer, Spring |
|
- | |||||
| 8 | 60608-2 | Orifice, Fan Blade |
|
- | |||||
| 9 | 67115-3 | Tunnel, Air (frz.) |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 400015-31) |
|
Immediately | $ 12.62 | ||||
| 11 | 66403-11 | Cover, Evaporator |
|
- | |||||
| 12 | 67131-1 | Bottom, Frz. |
|
- | |||||
| 13 | 67142-4 | Shelf, Frz. (plastic) |
|
- | |||||
| 14 | 67176-4 | Trim Frz Shelf |
|
- | |||||
| 15 | 67419-2 | Divider, Shelf |
|
- | |||||
| 16 | 406008-1 | Screw |
|
- | |||||
| 17 | 65570-1 | Freezer Shelf Cup |
|
- | |||||
| 18 | 67696-6 | Shelf |
|
- | |||||
| 19 | 67648-1 | Support, Divider |
|
- | |||||
| 20 | 67657-3 | Guide, Divider |
|
- | |||||
| 21 | 66325-11 | Seal, Foam Tray |
|
- | |||||
| 22 | 67593-2 | Plug Fill Tube |
|
- | |||||
| 22 | 67666-3 | Tube, Fill |
|
- | |||||
| 23 | 66480-6 | Cover, Plenum |
|
- | |||||
| 24 | W11384469 | Switch, Light (Replaces: 66987-1) |
|
Immediately | $ 33.51 | ||||
| 25 | 67240-1 | Shield, Light |
|
- | |||||
| 26 | 67241-1 | Base Lamp Holder |
|
- | |||||
| 27 | 67361-1 | Deflector, Light |
|
- | |||||
| 28 | 67368-1 | Holder, Lamp |
|
- | |||||
| 28 | 400017-103 | Screw |
|
- | |||||
| 29 | W11233072 | Screw (Replaces: 400026-12) |
|
Immediately | $ 12.62 | ||||
| 29 | 67625-1 | Duct, Air |
|
- | |||||
| 30 | 40A15 | Bulb, Light (40 Watt) (Replaces: 31956) |
|
Immediately | $ 1.98 | ||||
| 31 | WP841180A | Tray, Ice (Replaces: 59281-5) |
|
Immediately | $ 41.00 | ||||
| 32 | 67114-2 | Shelf, Ice Tray |
|
- | |||||
| 33 | 67141-1 | Pan, Ice |
|
- | |||||
| 34 | 68307-1 | Grommet, Water Entry |
|
- | |||||
| 34 | 68187-1 | Cap, Connector |
|
- | |||||
| 34 | 67557-1 | Plug Button |
|
- |
