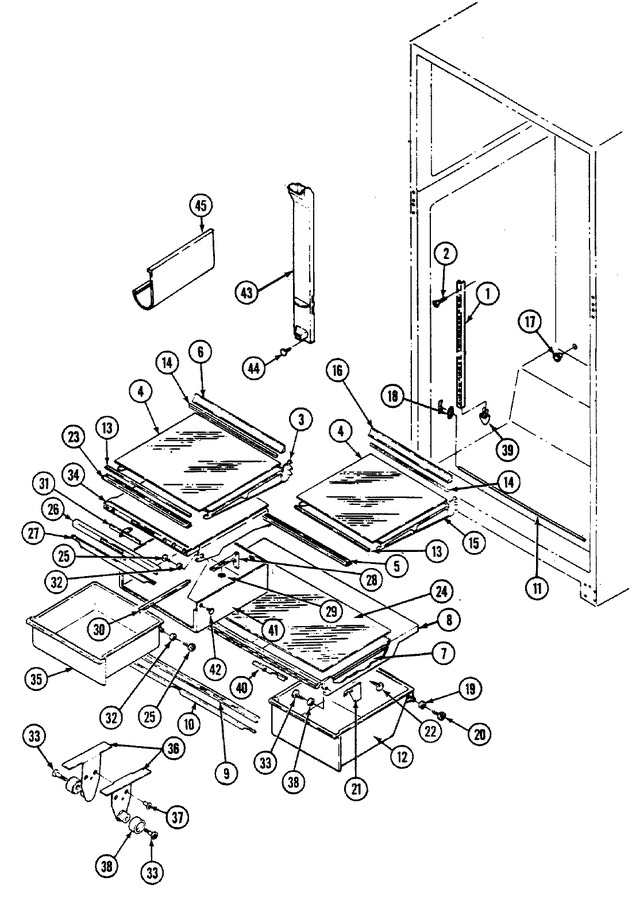

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60096-9 | Rail, Shelf Support (center) | 10 |
|
- | ||||
| 1 | 60096-7 | Rail, Shelf Support (lt) | 10 |
|
- | ||||
| 1 | 60096-8 | Rail, Shelf Support (rt) | 10 |
|
- | ||||
| 2 | 400037-28 | Screw | 10 |
|
- | ||||
| 3 | 67269-4 | Frame, Meat Shelf | 10 |
|
- | ||||
| 4 | 67267-16 | Shelf, Glass | 10 |
|
- | ||||
| 5 | 67783-35 | Trim, Shelf Front | 10 |
|
- | ||||
| 6 | 67309-42 | Trim, Cantilever | 10 |
|
- | ||||
| 7 | 69779-4 | Seal, Crisper Shelf (side) | 10 |
|
- | ||||
| 8 | 70043-2 | Shelf, Crisper | 10 |
|
- | ||||
| 9 | 67204-37 | Trim, Crisper Shelf | 10 |
|
- | ||||
| 10 | 69798-10 | Seal, Crisper Shelf | 10 |
|
- | ||||
| 11 | 68756-4 | Rail, Support | 10 |
|
- | ||||
| 12 | 69928-20 | Pan, Crisper | 10 |
|
- | ||||
| 12 | 69928-19 | Pan, Crisper | 10 |
|
- | ||||
| 13 | 67265-3 | Gasket, Trim Front | 10 |
|
- | ||||
| 14 | 67266-3 | Gasket Trim Mounting Rear | 10 |
|
- | ||||
| 15 | 67270-4 | Frame, Split Shelf | 10 |
|
- | ||||
| 16 | 67309-39 | Trim, Cantilever | 10 |
|
- | ||||
| 17 | 67163-1 | Grommet, Crisper Shelf | 10 |
|
- | ||||
| 18 | 68757-1 | Cup, U-rail Support | 10 |
|
- | ||||
| 19 | 67423-1 | Roller, Crisper Pan | 10 |
|
- | ||||
| 20 | 65275-6 | Screw | 10 |
|
$ 5.48 | ||||
| 21 | 67895-1 | Support, Crisper Shelf (lt) | 10 |
|
- | ||||
| 21 | 67895-2 | Support, Crisper Shelf (rt) | 10 |
|
- | ||||
| 22 | 65275-28 | Screw | 10 |
|
- | ||||
| 23 | 67783-35 | Trim, Shelf Front | 10 |
|
- | ||||
| 24 | 67489-14 | Glass, Cripser Shelf | 10 |
|
- | ||||
| 25 | 65275-6 | Screw | 10 |
|
$ 5.48 | ||||
| 26 | 67071-8 | Trim, Meat Pan Support | 10 |
|
- | ||||
| 27 | 67677-2 | Seal, Meat Pan | 10 |
|
- | ||||
| 28 | 67072-12 | Actuator, Meat Pan | 10 |
|
- | ||||
| 29 | 431019-511 | Nut | 10 |
|
- | ||||
| 30 | 67073-4 | Linkage, Meat Pan | 10 |
|
- | ||||
| 31 | 67074-2 | Slide, Control | 10 |
|
- | ||||
| 32 | 67423-1 | Roller, Crisper Pan | 10 |
|
- | ||||
| 33 | 65275-34 | Screw | 10 |
|
- | ||||
| 34 | 67649-14 | Support, Meat Pan----na | 10 |
|
- | ||||
| 35 | 69928-16 | Pan, Meat | 10 |
|
- | ||||
| 36 | 67464-2 | Bracket, Center Roller | 10 |
|
- | ||||
| 37 | WP210720 | Rivet (Replaces: 26397-6) | 10 |
|
$ 12.14 | ||||
| 38 | 67423-1 | Roller, Crisper Pan | 10 |
|
- | ||||
| 39 | 60340-1 | End Cap, Center Rail | 10 |
|
- | ||||
| 40 | 67491-2 | Slide, Control | 10 |
|
- | ||||
| 41 | 67069-11 | Housing, Meat Pan | 10 |
|
- | ||||
| 42 | 67688-3 | Plug Button | 10 |
|
$ 4.83 | ||||
| 43 | 69574-1 | Tunnel, Air (meat) | 10 |
|
- | ||||
| 44 | W11233072 | Screw (Replaces: 400015-31) | 10 |
|
Immediately | $ 12.62 | |||
| 45 | 67308-5 | Holder, Wine Bottle | 10 |
|
- |
