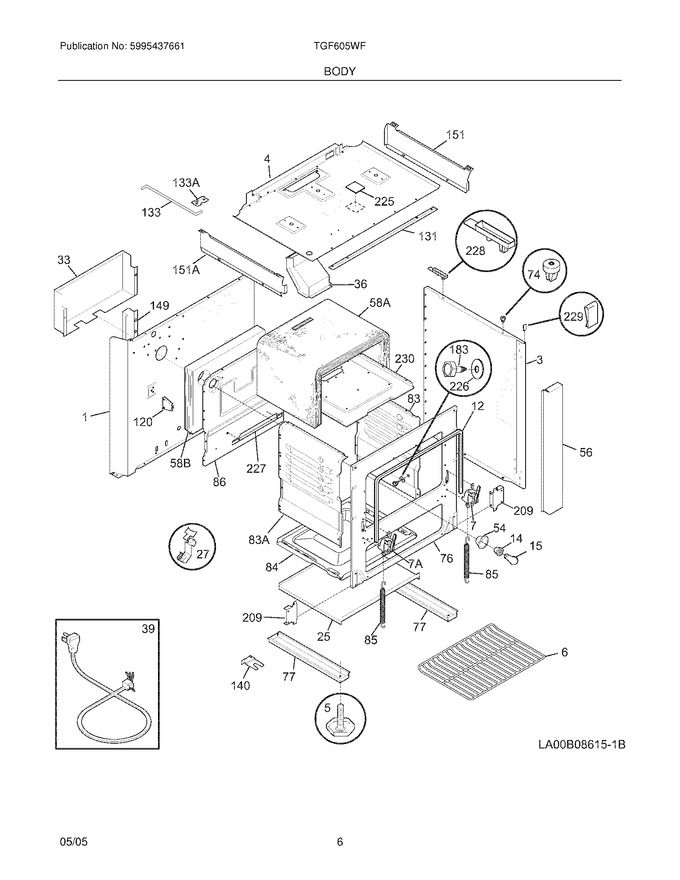

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318076301 | Back,main |
|
- | |||||
| 3 | 318317901 | Panel-bodyside,white |
|
- | |||||
| 4 | 318133500 | Burner Box, Bottom |
|
- | |||||
| 5 | 318175510 | Screw-leveling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 6 | 5303311539 | Rack,oven |
|
- | |||||
| 7 | 3205894 | Hinge-oven Door, Rh |
|
$ 55.91 | |||||
| 12 | 5308008022 | Seal,oven Door |
|
$ 124.89 | |||||
| 14 | 316116400 | Receptacle,oven Light (Replaces: 318224000) |
|
Immediately | $ 56.10 | ||||
| 15 | 40A15 | Bulb/lamp,oven Light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 25 | 318121701 | Panel,oven Bottom |
|
- | |||||
| 27 | 5303284616 | Clip,thermo Bulb Mtg |
|
$ 9.86 | |||||
| 33 | 318114301 | Cover Wire Back |
|
- | |||||
| 36 | 318089700 | Flue |
|
- | |||||
| 39 | 318144003 | Cord,service |
|
- | |||||
| 54 | 5303271606 | Housing,oven Light |
|
- | |||||
| 56 | 08013993 | Trim-bodyside, White |
|
- | |||||
| 74 | 3051063 | Grommet,bodyside |
|
- | |||||
| 76 | 318133902 | Frame,oven Front |
|
- | |||||
| 77 | 318166701 | Rail,base |
|
- | |||||
| 83 | 318134300 | Liner,oven ,rh |
|
- | |||||
| 84 | 318134600 | Liner,oven ,bottom |
|
- | |||||
| 85 | 5308008028 | Spring-oven Door |
|
- | |||||
| 86 | 318134800 | Liner-oven, Back |
|
- | |||||
| 120 | 3051096 | Support,oven Rear |
|
- | |||||
| 131 | 318163000 | Support,control Panel |
|
- | |||||
| 133 | 3051554 | Rod,support ,main Top Panel |
|
- | |||||
| 140 | 5304405240 | Anti-tip Accessories |
|
- | |||||
| 149 | 3131046 | Channel,wiring |
|
- | |||||
| 151 | 5303131054 | Shield,bodyside ,lh |
|
- | |||||
| 183 | 08008037 | Bolt, Shoulder |
|
- | |||||
| 209 | 5303286692 | Support,rail |
|
- | |||||
| 225 | 3018339 | Plate,observation |
|
- | |||||
| 226 | 3201899 | Washer,flat |
|
- | |||||
| 227 | 3131038 | Support-oven Bottom |
|
- | |||||
| 228 | 5303311537 | Grommet-main Top |
|
- | |||||
| 229 | 3131791 | Clip,bodyside |
|
$ 19.01 | |||||
| 230 | 5303324119 | Liner-oven, Top |
|
- | |||||
| 58A | 318133712 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318133713 | Insulation,oven Back |
|
- | |||||
| 7A | 3205895 | Hinge-oven Door, Lh |
|
- | |||||
| 83A | 318134200 | Liner-oven, Lh |
|
- | |||||
| F133 | 6743 | Bracket-rod, Main Top |
|
- | |||||
| F151 | 5303131053 | Shield-bodyside,rh |
|
- | |||||
| NI | 154079601 | Nut,keps ,10-24 (Replaces: 3201885) |
|
$ 0.41 | |||||
| NI | 3201861 | Screw,6 X 0.375 ,(4) |
|
$ 0.76 | |||||
| NI | 5303311528 | Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black |
|
- |
