SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer

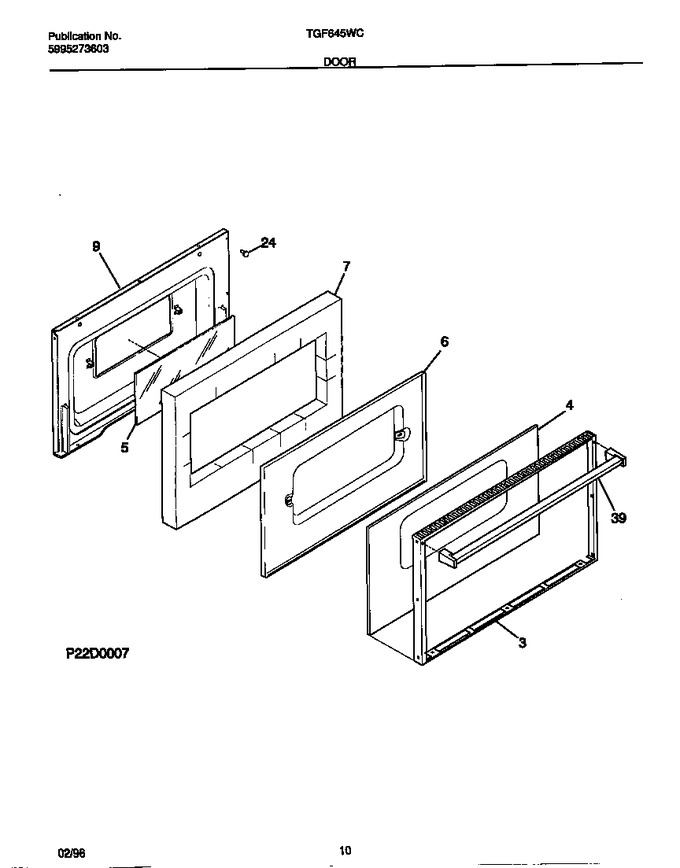

06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318083600 | Trim-oven Door |
|
- | |||||
| 5 | 5303316988 | Glass-oven Door, Inner |
|
- | |||||
| 6 | 5308012609 | Shield-insulation |
|
- | |||||
| 7 | 5303018345 | Insulation, Oven Door |
|
- | |||||
| 24 | 5303131771 | Bumper-door, Top |
|
- | |||||
| *06096 | 5303131766 | Screw, 6-32 X 3/8`` |
|
$ 10.87 | |||||
| *06097 | 5303308456 | Screw, 8-18 X 17/32, Door Frame |
|
$ 10.06 | |||||
| *06098 | 3051050 | Screw-shoulder |
|
$ 12.29 | |||||
| 39A | 318040800 | Handle-door, Oven |
|
- | |||||
| 39B | 5303051043 | Screw-handle (not Illustrated) |
|
- | |||||
| 4A | 5308013866 | Glass-oven Door, Outer |
|
- | |||||
| 4B | 5303286309 | Support, Glass (not Illustrated) |
|
- | |||||
| 9A | 5303286744 | Liner-oven Door |
|
- | |||||
| 9B | 5308007939 | Plug, Door Liner (not Illustrated) |
|
- |
