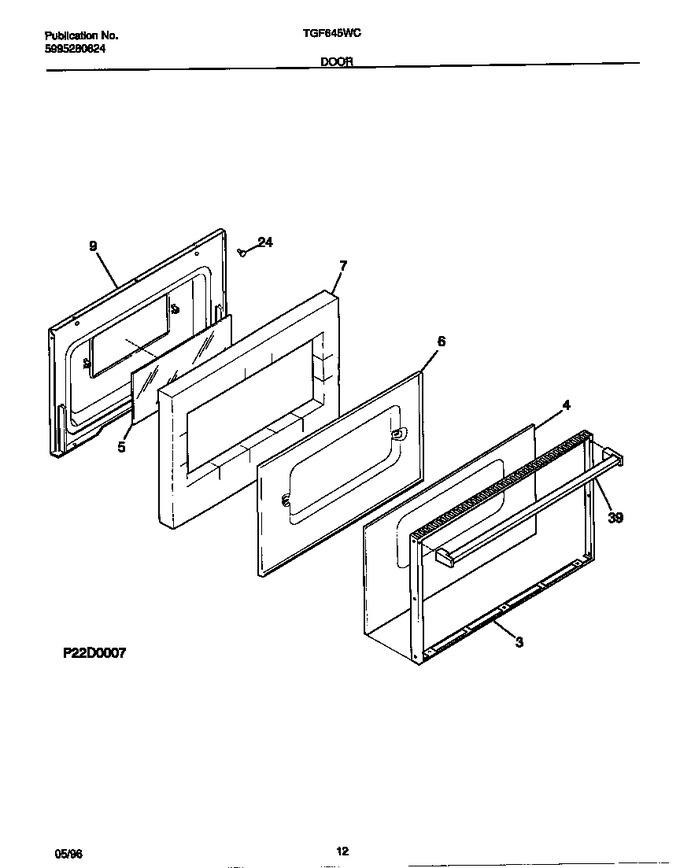

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318083600		Trim-oven Door		Appelez-nous	-
5	5303316988		Glass-oven Door, Inner		Appelez-nous	-
6	5308012609		Shield-insulation		Appelez-nous	-
7	5303018345		Insulation, Oven Door		Appelez-nous	-
24	5303131771		Bumper-door, Top		Appelez-nous	-
*48624	5303310504		Spacer-handle, (2)		Appelez-nous	-
*48625	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
*48626	3051050		Screw-shoulder				$ 12.29
*48627	5303131766		Screw, 6-32 X 3/8``, White				$ 10.87
*48628	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
39A	318040800		Handle-door, Oven		Appelez-nous	-
39B	5303051043		Screw-handle (not Illustrated)		Appelez-nous	-
4A	5308013866		Glass-oven Door, Outer		Appelez-nous	-
4B	5303286309		Support, Glass (not Illustrated)		Appelez-nous	-
9A	5303286744		Liner-oven Door		Appelez-nous	-
9B	5308007939		Plug, Door Liner (not Illustrated)		Appelez-nous	-
