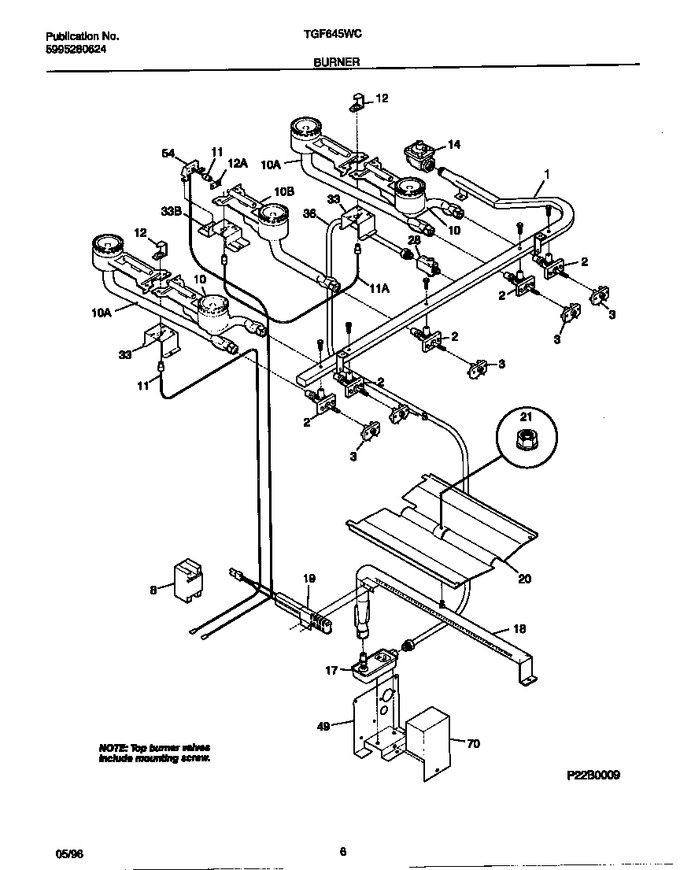

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318078002		Manifold Pipe		Appelez-nous	-
3	316032000		Switch-igniter, (4)				$ 58.70
8	5303209931		Spark Module		Appelez-nous	-
10	5303311550		Burner-top, Rear		Appelez-nous	-
10	5303311552		Burner,griddle		Appelez-nous	-
10	5303311551		Burner-top, Front		Appelez-nous	-
11	3203968		Ignitor-top Burner, Base		Appelez-nous	-
11	5303210548		Ignitor,top Burner ,front		Appelez-nous	-
12	5303311555		Retainer-igniter, Griddle		Appelez-nous	-
12	5303311554		Retainer-igniter		Appelez-nous	-
14	5308007974		Regulator-pressure				$ 309.02
17	5308009419		Valve-safety				$ 232.67
18	5303202752		Burner-oven				$ 26.83
19	5303935066		Ignitor-oven			Immediately	$ 59.58
20	3203676		Baffle,oven Burner		Appelez-nous	-
21	3051038		Nut		Appelez-nous	-
33	5303210472		Bracket,burner Mtg ,griddle		Appelez-nous	-
33	5303210471		Bracket-burner Mtg		Appelez-nous	-
36	5303316989		Tubing, 3/8, Alum		Appelez-nous	-
54	5303311553		Bracket-ignitor, Griddle		Appelez-nous	-
70	3131088		Cover,safety Valve		Appelez-nous	-
*48611	3051050		Screw-shoulder				$ 12.29
*48612	131202300		Screw, 8 X 5/8, Spark Module   (Replaces: 3131048)			Immediately	$ 13.46
*48613	08002868		Screw 10 X 24 X 1/2				$ 14.18
*48614	08008009		Bushing,snap		Appelez-nous	-
*48615	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*48616	5308007985		Terminal Board		Appelez-nous	-
28A	5303131099		Valve-shut Off		Appelez-nous	-
28B	5303131064		Nut-shut-off Valve (not Illustrated)		Appelez-nous	-
2A	316031800		Valve-top Burner, (4), With Mtg Screws		Appelez-nous	-
2B	316048200		Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, (4), W/gasket (not Illustrated)		Appelez-nous	-
49A	3131069		Bracket,safety Valve		Appelez-nous	-
49B	5303286686		Nut, Support Ovn Vlv (not Illustrated)		Appelez-nous	-
