View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door/drawer (6500prx)
03 - Main Top

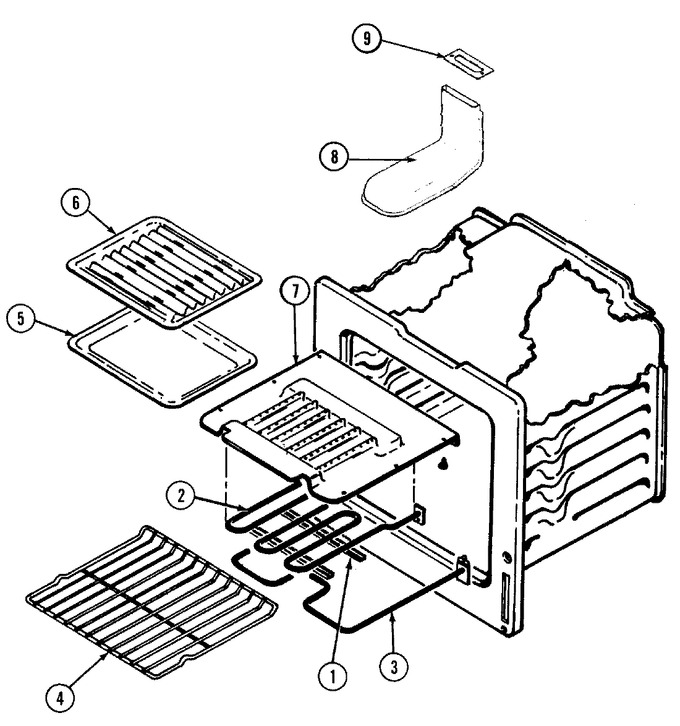

04 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11772394 | Screw (Replaces: 7101P300-60) | 01 |
|
Immediately | $ 10.94 | |||
| 1 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 1 | 3807F387-45 | Support, Broil Element | 01 |
|
- | ||||
| 2 | 7406P072-60 | Element, Broil | 01 |
|
- | ||||
| 3 | UB870 | Element, Bake (Replaces: 7406P064-60) | 01 |
|
Immediately | $ 44.96 | |||
| 4 | WPW10282492 | Rack (Replaces: 7801P046-60) | 01 |
|
Immediately | $ 65.15 | |||
| 5 | Y3401F02019 | Pan, Broil | 01 |
|
- | ||||
| 6 | Y3413F01619 | Insert, Broil Pan | 01 |
|
- | ||||
| 7 | 3601F202-45 | Baffle. Broil | 01 |
|
- | ||||
| 8 | 4006W112-45 | Box, Vent | 01 |
|
- | ||||
| 9 | 7201P055-60 | Gasket, Vent | 01 |
|
- |
