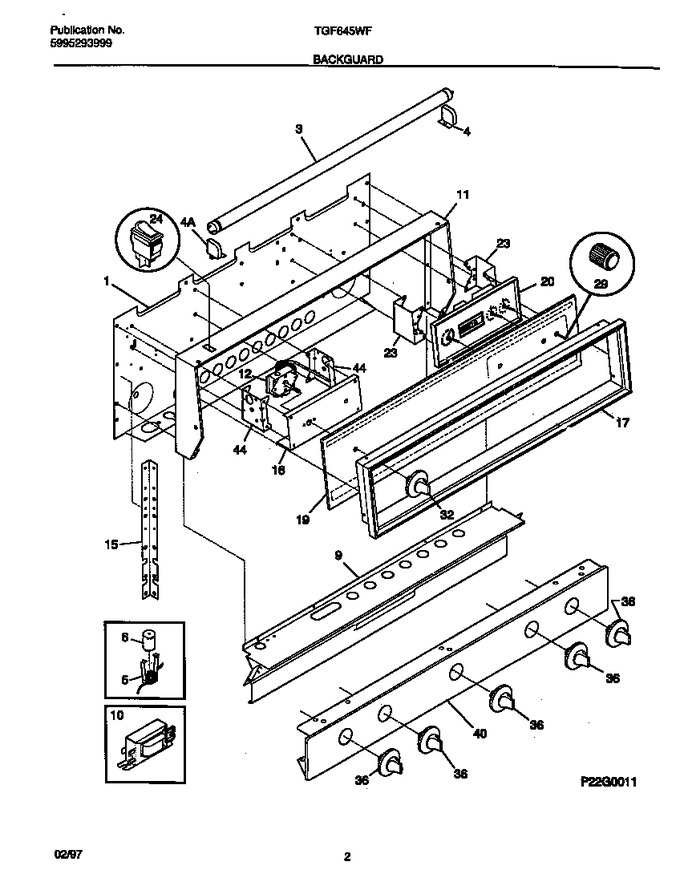

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318022401		Shield,backguard ,rear Wall		Appelez-nous	-
3	5303286690		Lamp-fluorescent, Backguard		Appelez-nous	-
4	5303311527		Receptacle-lamp, Lh		Appelez-nous	-
4	318110200		Receptacle-lamp, Rh		Appelez-nous	-
5	5303286746		Socket-starter				$ 42.95
6	5308068062		Starter,lamp				$ 30.46
9	316030102		Trim-vent		Appelez-nous	-
10	318122801		Ballast-lamp		Appelez-nous	-
11	5303311529		Trim-wrapper		Appelez-nous	-
12	318059000		Thermostat-oven		Appelez-nous	-
16	5303210475		Plate, Instrument Mtg		Appelez-nous	-
17	5308013930		Trim-control Panel		Appelez-nous	-
19	318001006		Panel-control, Glass		Appelez-nous	-
20	316065400		Clock/timer		Appelez-nous	-
23	318015310		Bracket-clock Mtg		Appelez-nous	-
24	5308015487		Switch, Oven Light, Rocker Type				$ 61.43
29	5303311122		Button-clock		Appelez-nous	-
32	318016817		Knob-thermostat		Appelez-nous	-
36	318016208		Knob-control, (5)		Appelez-nous	-
40	318005300		Panel-manifold		Appelez-nous	-
44	5303286745		Bracket, Plate Inst. Mtg, (2)		Appelez-nous	-
*16840	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
*16841	08008009		Bushing,snap		Appelez-nous	-
*16842	318055301		Bracket-selector		Appelez-nous	-
*16843	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*16844	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
*16845	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
*16846	5303311532		Screw, Back		Appelez-nous	-
15A	5308013296		Support,backguard ,(2)		Appelez-nous	-
15B	5303304544		Spacer-end Cap (not Illustrated)		Appelez-nous	-
