SELECT A DIAGRAM

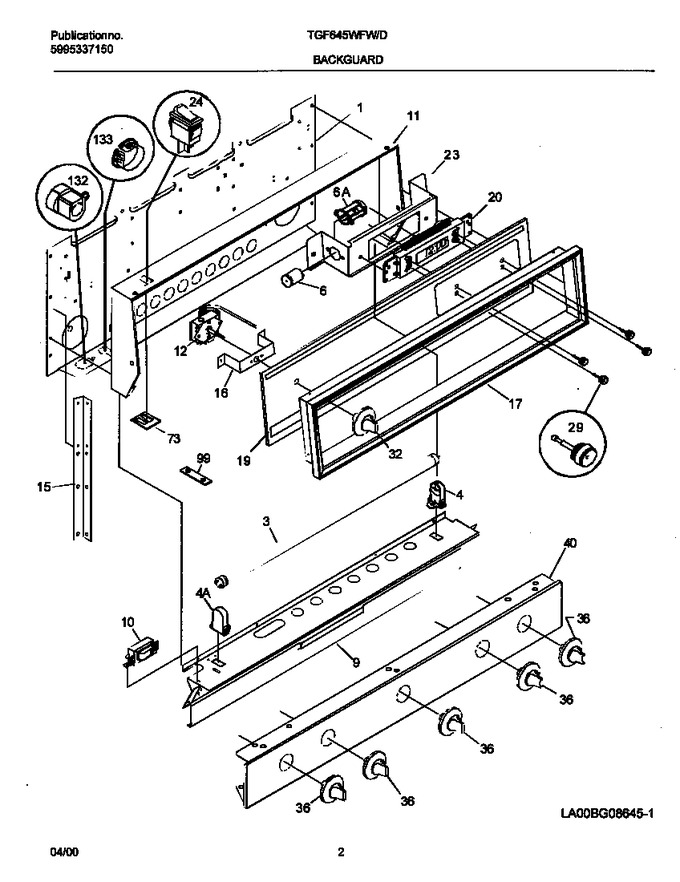

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318022401		Shield,backguard ,rear Wall		Appelez-nous	-
3	5303286690		Lamp-fluorescent, Backguard		Appelez-nous	-
4	318110300		Receptacle-lamp,rh/lh				$ 11.82
6	5308068062		Starter,lamp				$ 30.46
6	318110400		Holder,starter				$ 52.29
9	318162005		Shield-insulation		Appelez-nous	-
10	318122802		Ballast-lamp		Appelez-nous	-
11	5303311529		Trim-wrapper		Appelez-nous	-
12	318059203		Thermostat-oven		Appelez-nous	-
15	5308013296		Support,backguard ,(2)		Appelez-nous	-
16	318171900		Bracket,control		Appelez-nous	-
17	5308013930		Trim-control Panel		Appelez-nous	-
19	318001009		Panel-control,glass		Appelez-nous	-
20	318184800		Clock/timer		Appelez-nous	-
23	318015313		Bracket-clock Mtg		Appelez-nous	-
24	5308015487		Switch, Oven Light, Rocker Type				$ 61.43
28	5303272306		Push Button,clock Set ,black ,(2)		Appelez-nous	-
32	318016816		Knob,thermostat		Appelez-nous	-
36	318016209		Knob,control		Appelez-nous	-
40	318005300		Panel-manifold		Appelez-nous	-
73	318141200		Support,switch		Appelez-nous	-
99	5303304544		Spacer		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
*83800	3201861		Screw, 6 X 3/8				$ 0.76
*83801	08002868		Screw 10 X 24 X 1/2				$ 14.18
*83802	08008009		Bushing,snap		Appelez-nous	-
*83803	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*83804	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*83805	5303308450		Screw, 8 X 3/8		Appelez-nous	-
*83806	5303310510		Screw <10-24 X 5/8 >				$ 14.18
*83807	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
*83808	5303311528		Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black		Appelez-nous	-
*83809	5303324180		Screw,6 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
