SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

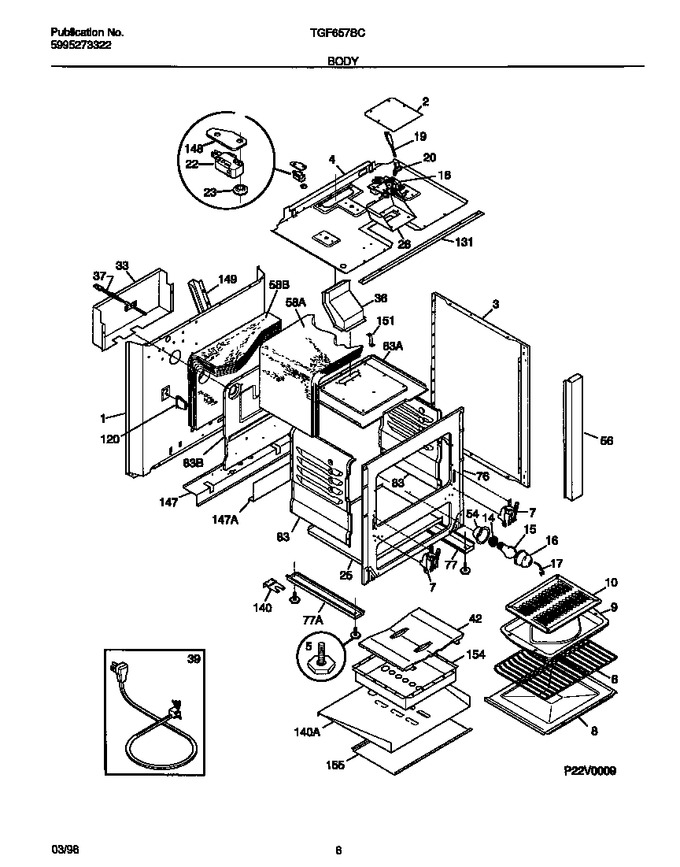

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303311540		Back-main		Appelez-nous	-
2	5303286855		Shield-oven Top		Appelez-nous	-
3	3131792		Panel-bodyside, Black		Appelez-nous	-
4	316030501		Burner Box		Appelez-nous	-
5	318175510		Screw-leveling   (Replaces: 5303210257)			Immediately	$ 24.26
6	5303311539		Rack,oven		Appelez-nous	-
8	5303286854		Panel-oven Bottom		Appelez-nous	-
9	5303286736		Pan Broiler		Appelez-nous	-
10	5303017712		Insert-broiler Pan		Appelez-nous	-
14	316116400		Socket-light/lamp, Oven   (Replaces: 5308011085)			Immediately	$ 56.10
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	5303205904		Retainer-glass				$ 7.67
18	5308068025		Latch,door		Appelez-nous	-
19	5308068040		Handle-latch		Appelez-nous	-
20	5303212486		Knob-latch		Appelez-nous	-
22	316031200		Switch,latch		Appelez-nous	-
23	3131095		Fastener, Switch		Appelez-nous	-
25	5303286861		Frame-oven Bottom		Appelez-nous	-
26	3131853		Shield-oven Top		Appelez-nous	-
33	5303311541		Shield-rear Wall		Appelez-nous	-
36	5303286747		Flue		Appelez-nous	-
37	5304497424		Probe-oven Temp   (Replaces: 3204593)			Immediately	$ 38.32
42	3131823		Shield-bake Burner		Appelez-nous	-
54	3009290		Housing-oven Light		Appelez-nous	-
56	10835		Trim,bodyside ,black		Appelez-nous	-
58	5303311542		Insulation,oven Back & Top		Appelez-nous	-
76	5303286857		Front-oven		Appelez-nous	-
77	5303210255		Rail,base ,rh		Appelez-nous	-
77	5303210256		Rail-base, Lh		Appelez-nous	-
77	5303286692		Support-rail (not Illustrated)		Appelez-nous	-
83	316031101		Liner-oven, Back		Appelez-nous	-
83	5303286862		Liner-oven, Top		Appelez-nous	-
120	3051096		Support,oven Rear		Appelez-nous	-
131	3205765		Support-control Pnl		Appelez-nous	-
140	3131041		Retainer-insulation		Appelez-nous	-
140	3131820		Retainer-insulation		Appelez-nous	-
147	10852		Support, Control Valve		Appelez-nous	-
147	08068039		Support, Control Valve		Appelez-nous	-
148	3017411		Insulator,switch		Appelez-nous	-
149	3131046		Channel,wiring		Appelez-nous	-
151	3131800		Bracket,burner Box		Appelez-nous	-
154	5308068046		Pan-oven Burner		Appelez-nous	-
155	5303210390		Shield-drawer		Appelez-nous	-
*35565	08068030		Actuator, Lock Switch		Appelez-nous	-
*35566	5303131843		Bracket-lock Switches		Appelez-nous	-
*35567	5303308447		Screw, Switch-ovn Lght		Appelez-nous	-
*35568	5303311543		Screw,bracket ,lock Switches		Appelez-nous	-
39A	5303308453		Cord,electric Power		Appelez-nous	-
39B	08067961		Fastener-power Cord		Appelez-nous	-
3A	3051063		Grommet, Bodyside (not Illustrated)		Appelez-nous	-
3B	3131791		Clip, Bodyside (not Illustrated)				$ 19.01
3C	5303131053		Shield-bodyside, Rh (not Illustrated)		Appelez-nous	-
3D	5303131054		Shield-bodyside, Lh (not Illustrated)		Appelez-nous	-
3E	5303311537		Grommet-main Top (not Illustrated)		Appelez-nous	-
58A	5303311538		Insulation, Oven Wrapper		Appelez-nous	-
58B	5303299689		Wire-tie (not Illustrated)		Appelez-nous	-
7A	3205894		Hinge-oven Door, Rh				$ 55.91
7B	3205895		Hinge-oven Door, Lh		Appelez-nous	-
7C	3131816		Spring-oven Door (not Illustrated)		Appelez-nous	-
83A	5303286859		Liner-oven, Rh		Appelez-nous	-
83B	5303286860		Liner-oven, Lh		Appelez-nous	-
