01 - Cartons


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Inner Door


05 - Optional Ice Maker Kit


06 - Outer Door


07 - Shelves & Accessories


08 - Unit Compartment & System

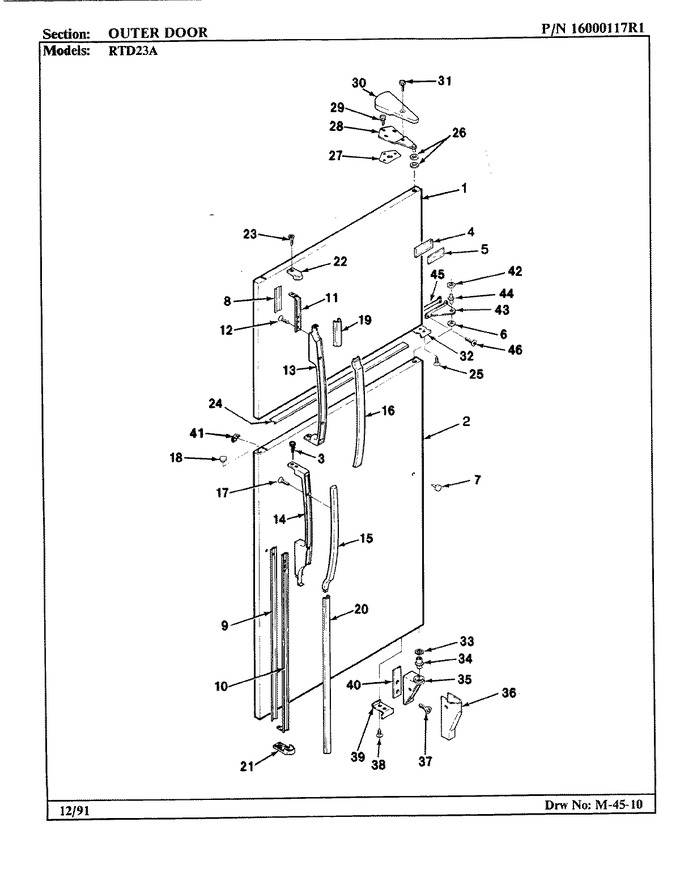

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72042-5-AM		Panel, Frz. Door (alm)	-	Appelez-nous	-
1	72042-5-WW		Panel, Frz. Door (wht)	-	Appelez-nous	-
2	72042-11-WW		Panel, F.f. Door (wht)	-	Appelez-nous	-
3	65275-22		Screw	-	Appelez-nous	-
4	67673-1		Bezel, Nameplate	-	Appelez-nous	-
5	67194-1		Insert, Nameplate	-	Appelez-nous	-
6	54233-2		Washer	-	Appelez-nous	-
7	67678-3		Plug Button, Handle Top (alm)	-	Appelez-nous	-
7	67678-2		Plug Button (wht)	-	Appelez-nous	-
8	67746-3		Shim, Trim	-	Appelez-nous	-
9	67746-5		Shim, Trim	-	Appelez-nous	-
10	67157-5		Bracket, Handle	-	Appelez-nous	-
11	67157-3		Bracket, Handle	-	Appelez-nous	-
12	65275-31		Screw, Bracket To Handle	-	Appelez-nous	-
13	67778-1		Handle, Door	-	Appelez-nous	-
14	67778-1		Handle, Door	-	Appelez-nous	-
14	67697-3		Shim Handle	-	Appelez-nous	-
14	67697-2		Shim Handle	-	Appelez-nous	-
14	67697-4		Shim	-	Appelez-nous	-
14	65275-29		Screw,handle Bottom (hex Head)	-	Appelez-nous	-
14	66799-3		Clip, Handle Screw	-	Appelez-nous	-
15	67153-1		Insert, Handle (freezer)	-	Appelez-nous	-
16	67153-1		Insert, Handle (freezer)	-	Appelez-nous	-
17	402077-7		Screw	-	Appelez-nous	-
18	67634-3		Plug Button, Hinge Cup (alm)	-	Appelez-nous	-
18	67634-2		Plug Button, Hinge Cup (wht)	-	Appelez-nous	-
18	55782-10		Plug Button, Hdle & Door Stop	-	Appelez-nous	-
18	55782-6		Plug Button (almond)	-	Appelez-nous	-
19	67805-3		Trim Handle (frz)	-	Appelez-nous	-
20	67805-5		Trim, Extension	-	Appelez-nous	-
21	68818-1		Endcap, Handle (f.f. Door)	-	Appelez-nous	-
22	67382-1		Endcap, Handle (frz.)	-	Appelez-nous	-
23	65275-26		Screw (no.12 X 5/8``)	-	Appelez-nous	-
23	65275-22		Screw	-	Appelez-nous	-
24	66651-7		Trim, Door	-	Appelez-nous	-
25	67386-1		Clip, Handle	-	Appelez-nous	-
25	65275-18		Screw, Freezer Stop	-	Appelez-nous	-
26	54233-1		Washer	-			$ 7.71
27	65031-1		Shim, Upper Hinge	-	Appelez-nous	-
28	56144-9		Plug Button, Hinge Screw (alm)	-	Appelez-nous	-
28	67456-2		Hinge, Top	-	Appelez-nous	-
28	56144-13		Plug Button, Upper Hinge (wht)	-	Appelez-nous	-
29	WP3-24838-048		Screw   (Replaces: 9986-87)	-			$ 7.00
30	67229-4		Cover, Upper Hinge(wht.)	-	Appelez-nous	-
30	67229-3		Cover, Upper Hinge (alm.)	-	Appelez-nous	-
31	403060-1		Screw, Hinge Cover	-	Appelez-nous	-
32	67662-1		Stop, Door	-	Appelez-nous	-
33	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	-		Immediately	$ 45.86
34	67485-1		Pin Lower Hinge	-	Appelez-nous	-
35	67772-2		Hinge, Lower	-	Appelez-nous	-
35	65275-10		Screw, Tapping Plate	-	Appelez-nous	-
36	67117-2		Cover,lower Hinge	-	Appelez-nous	-
36	401005-4		Screw, Cover	-	Appelez-nous	-
37	65275-46		Screw	-	Appelez-nous	-
38	67386-1		Clip, Handle	-	Appelez-nous	-
38	65275-26		Screw (no.12 X 5/8``)	-	Appelez-nous	-
39	67770-1		Door Stop, Fresh Food	-	Appelez-nous	-
40	67849-1		Shim Lower Hinge	-	Appelez-nous	-
41	67386-1		Clip, Handle	-	Appelez-nous	-
42	67483-1		Washer, Center Hinge (upper)	-	Appelez-nous	-
43	67859-1		Hinge, Center	-	Appelez-nous	-
44	67322-1		Pin, Center Hinge	-	Appelez-nous	-
45	67857-1		Shim, Center Hinge	-	Appelez-nous	-
45	67475-1		Tapping Plate	-	Appelez-nous	-
46	65275-10		Screw, Tapping Plate	-	Appelez-nous	-
46	65275-21		Screw, Center Hinge	-	Appelez-nous	-
