Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303311535 Drawer Appelez-nous -
4 5303311536 Panel-drawer Appelez-nous -
13 5303051055 Channel-drawer, Rh Special Order $ 56.60

16 318159403 Panel-main Top Appelez-nous -
19 5308011431 Pan-burner, (4) Appelez-nous -
20 5303272274 Grate, (4) Appelez-nous -
21 154079601 Nut,keps ,10-24   (Replaces: 3201885) Special Order $ 0.41

33 318169000 Cover-griddle Appelez-nous -
34 318102600 Griddle Special Order $ 188.24

36 5303935079 Roller Appelez-nous -
39 10819 Handle-drawer, Black Appelez-nous -
60 5303310510 Screw,10-24 X 0.625 Special Order $ 14.18

13A 5303051056 Channel,drawer ,lh Special Order $ 78.44

19A 318198100 Pan,griddle ,stainless Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

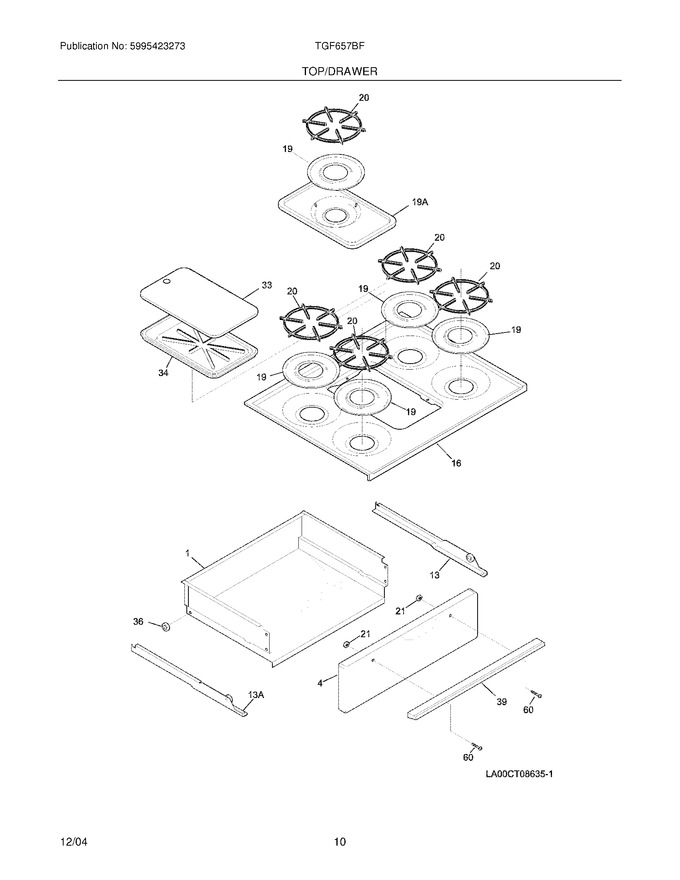

Diagram for TGF657BFB6
