SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit (ice)


06 - Shelves & Accessories


07 - Unit Compartment & System

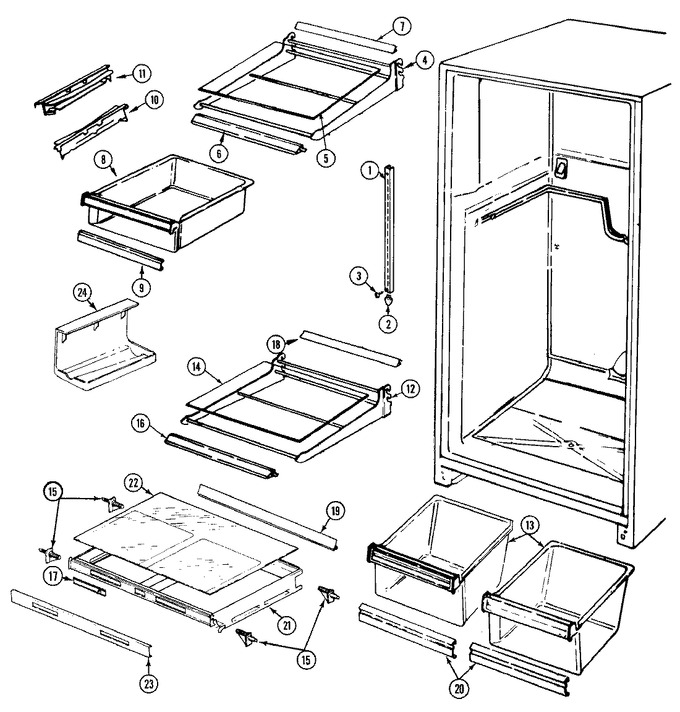

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-9		Rail, Shelf Support (center)	10	Appelez-nous	-
1	60096-7		Rail, Shelf Support (lt)	10	Appelez-nous	-
1	60096-8		Rail, Shelf Support (rt)	10	Appelez-nous	-
2	60340-1		End Cap, Center Rail	10	Appelez-nous	-
3	400037-28		Screw	10	Appelez-nous	-
4	70106-8		Frame, Meat Shelf	10	Appelez-nous	-
5	68139-26		Glass Shelf	10	Appelez-nous	-
5	68139-13		Glass, Split Shelf	10	Appelez-nous	-
6	70108-2		Trim, Meat Pan (frt.)	10	Appelez-nous	-
7	70110-2		Trim, Split Shelf (rear)	10	Appelez-nous	-
8	66636-126		Pan, Meat	10	Appelez-nous	-
9	70315-3		Trim, Meat Pan	10	Appelez-nous	-
10	66813-1		Rail, Meat Pan (lt)	10	Appelez-nous	-
11	66814-1		Rail, Meat Pan (rt)	10	Appelez-nous	-
12	70106-2		Frame, Split Shelf	10	Appelez-nous	-
13	68163-649		Pan, Crisper	10	Appelez-nous	-
14	68139-15		Glass, Split Shelf	10	Appelez-nous	-
15	68836-1		Stud, Crisper Support	10	Appelez-nous	-
16	70107-2		Trim, Split Shelf (front)	10	Appelez-nous	-
17	69542-5		Slide, Control	10	Appelez-nous	-
18	70110-2		Trim, Split Shelf (rear)	10	Appelez-nous	-
19	68798-9		Trim, Crisper Shelf (rear)	10	Appelez-nous	-
20	70315-4		Trim, Crisper Pan	10	Appelez-nous	-
21	69057-2		Shelf, Crisper	10	Appelez-nous	-
22	68743-17		Glass, Crisper Shelf	10	Appelez-nous	-
23	70282-3		Trim, Crisper Shelf (frt.)	10	Appelez-nous	-
24	69615-1		Holder, Beverage	10	Appelez-nous	-
24	69570-1		Tunnel, Air (meat)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
