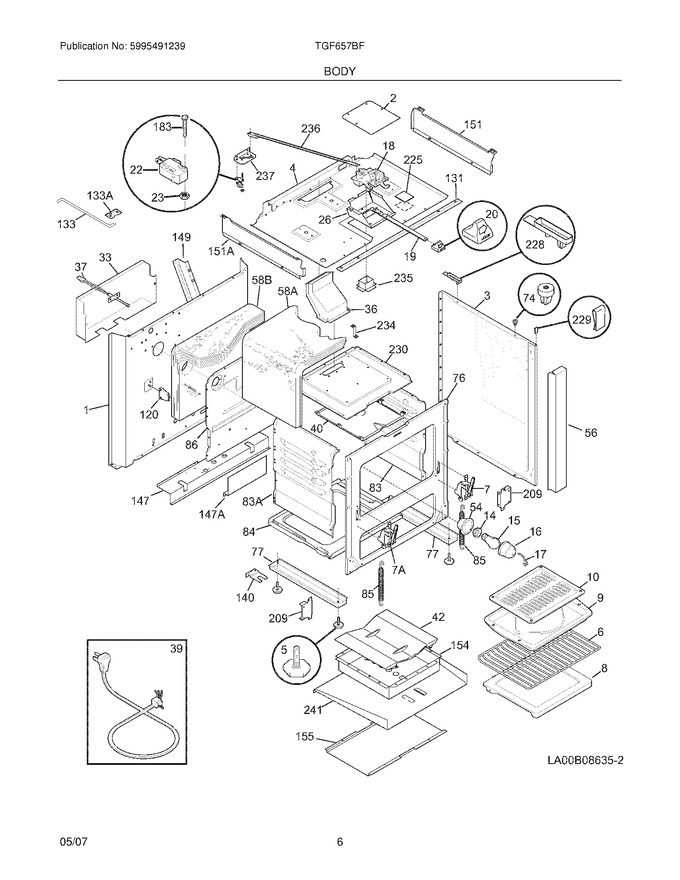

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318076305		Back,main		Appelez-nous	-
2	318135700		Cover,door Lock		Appelez-nous	-
3	318317903		Panel-bodyside,black				$ 240.45
4	318133501		Burner Box		Appelez-nous	-
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318345202		Rack,oven		Appelez-nous	-
7	318348800		Hinge Assy,rh				$ 74.09
8	318135500		Panel-oven Bottom Insert		Appelez-nous	-
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Accessory				$ 68.85
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	5303205904		Clip,lamp Cover ,retainer				$ 7.67
19	318198000		Handle,door Lock		Appelez-nous	-
20	5303212486		Knob-latch		Appelez-nous	-
23	3131095		Fastener, Switch		Appelez-nous	-
26	318168200		Support,door Lock		Appelez-nous	-
33	318114302		Cover,wire ,back		Appelez-nous	-
36	318089700		Flue		Appelez-nous	-
39	318144007		Cord,service		Appelez-nous	-
40	318133301		Baffle,broil Burner		Appelez-nous	-
42	318168700		Baffle,oven Burner		Appelez-nous	-
54	5303271606		Housing,oven Light		Appelez-nous	-
56	10835		Trim,bodyside ,black		Appelez-nous	-
74	3051063		Grommet,bodyside		Appelez-nous	-
76	318133903		Frame,oven Front		Appelez-nous	-
77	318166702		Rail,base		Appelez-nous	-
83	318134400		Liner,oven ,rh		Appelez-nous	-
84	318134700		Frame,oven Bottom		Appelez-nous	-
85	318088400		Spring,oven Door ,(2)				$ 116.03
86	318135300		Liner,oven ,back		Appelez-nous	-
120	3051096		Support,oven Rear		Appelez-nous	-
131	318163000		Support,control Panel		Appelez-nous	-
133	3051554		Rod,support ,main Top Panel		Appelez-nous	-
140	5304405240		Anti-tip Accessories		Appelez-nous	-
147	318168401		Support,safety Valve		Appelez-nous	-
149	3131046		Channel,wiring		Appelez-nous	-
151	5303131054		Shield,bodyside ,lh		Appelez-nous	-
154	318076600		Pan,oven Burner		Appelez-nous	-
155	318160601		Shield,door Lock ,btm		Appelez-nous	-
183	5303308447		Screw, Switch-ovn Lght		Appelez-nous	-
209	5303286692		Support,rail		Appelez-nous	-
225	3018339		Plate,observation		Appelez-nous	-
228	5303311537		Grommet-main Top		Appelez-nous	-
229	3131791		Clip,bodyside				$ 19.01
230	5303324119		Liner-oven, Top		Appelez-nous	-
234	3131800		Bracket,burner Box		Appelez-nous	-
235	318133201		Shield,door Lock ,btm		Appelez-nous	-
236	318170701		Bracket,lock Switches		Appelez-nous	-
237	5303131843		Bracket-lock Switches		Appelez-nous	-
241	318121201		Retainer,btm Insullation		Appelez-nous	-
58A	318285029		Insulation,top & Sides ,oven Wrapper		Appelez-nous	-
58B	318285030		Insulation,oven Back		Appelez-nous	-
7A	318348801		Hinge Assy,lh				$ 80.24
83A	318134401		Liner,oven ,lh		Appelez-nous	-
F133	6743		Bracket-rod, Main Top		Appelez-nous	-
F147	08068039		Support, Control Valve		Appelez-nous	-
F151	5303131053		Shield-bodyside,rh		Appelez-nous	-
F18	5308068025		Latch,door		Appelez-nous	-
F22	316031200		Switch,latch		Appelez-nous	-
F236	5304443138		Screw,10-24 X 3/8 ,(2)		Appelez-nous	-
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
NI	5304414648		Screw,10-24 ,(4)   (Replaces: 5303308458)				$ 14.18
NI	5303324186		Screw,10-24 X 1/2		Appelez-nous	-
NI	318224706		Wiring Harness,chassis		Appelez-nous	-
NI	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
NI	3051070		Screw,hex Washer Head ,10-24 X 0.438 ,special		Appelez-nous	-
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
