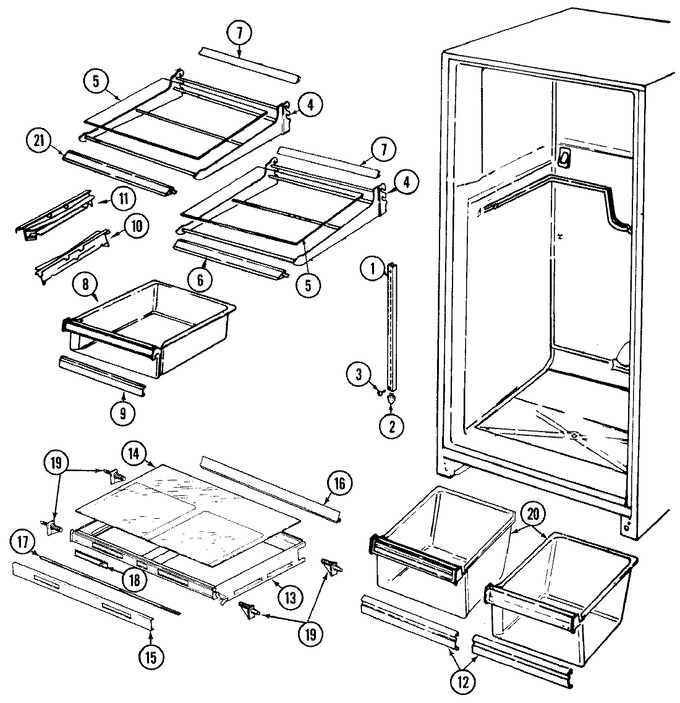

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60096-9 | Rail, Shelf Support (center) | 10 |
|
- | ||||
| 1 | 60096-8 | Rail, Shelf Support (rt) | 10 |
|
- | ||||
| 1 | 60096-7 | Rail, Shelf Support (lt) | 10 |
|
- | ||||
| 2 | 60340-1 | End Cap, Center Rail | 10 |
|
- | ||||
| 3 | 400037-28 | Screw | 10 |
|
- | ||||
| 4 | 70106-9 | Frame, Split Shelf | 10 |
|
- | ||||
| 5 | 68139-27 | Glass, Meat Shelf | 10 |
|
- | ||||
| 5 | 68139-14 | Glass Cantilever Shelf | 10 |
|
- | ||||
| 6 | 70108-3 | Trim, Meat Shelf (front) | 10 |
|
- | ||||
| 7 | 70110-3 | Trim, Split Shelf (rear) | 10 |
|
- | ||||
| 8 | 66636-126 | Pan, Meat | 10 |
|
- | ||||
| 9 | 70315-3 | Trim, Meat Pan | 10 |
|
- | ||||
| 10 | 66813-2 | Slide Rail,meat & Deli Pan | 10 |
|
- | ||||
| 11 | 66814-2 | Rail, Meat Pan (rt) | 10 |
|
- | ||||
| 12 | 70315-5 | Trim, Crisper Pan | 10 |
|
- | ||||
| 13 | 69057-3 | Shelf, Crisper | 10 |
|
- | ||||
| 14 | 68743-18 | Glass, Crisper Shelf | 10 |
|
- | ||||
| 15 | 70282-4 | Trim, Crisper Shelf (frt.) | 10 |
|
- | ||||
| 16 | 68798-10 | Trim, Crisper Shelf (rear) | 10 |
|
- | ||||
| 17 | 68797-1 | Seal | 10 |
|
- | ||||
| 18 | 69542-5 | Slide, Control | 10 |
|
- | ||||
| 19 | 68836-1 | Stud, Crisper Support | 10 |
|
- | ||||
| 20 | 68223-620 | Pan, Crisper | 10 |
|
- | ||||
| 21 | 70107-3 | Trim, Split Shelf (front) | 10 |
|
- | ||||
| 21 | 69570-5 | Tunnel, Air (meat) | 10 |
|
- | ||||
| 21 | 69542-5 | Slide, Control | 10 |
|
- |
