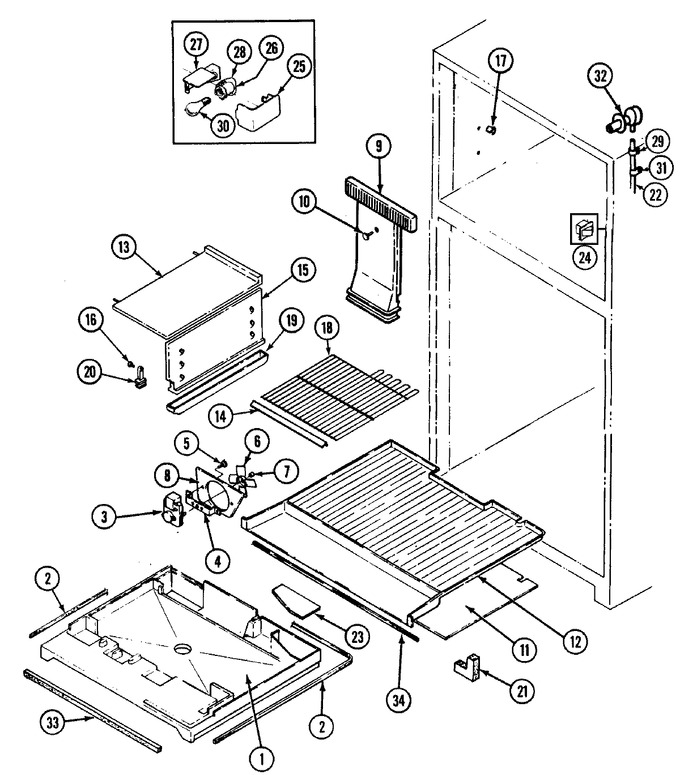

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Freezer Compartment
02 - Fresh Food Compartment
03 - Ice Maker
04 - Inner Door
05 - Shelves & Accessories
06 - Unit Compartment & System
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69403-1 | Tray, Styrofoam Mullion | 10 |
|
- | ||||
| 2 | 69414-2 | Seal, Mullion Tray--qh | 10 |
|
- | ||||
| 3 | 69106-2 | Motor, Evaporator Fan | 10 |
|
$ 95.45 | ||||
| 3 | 406062-1 | Screw | 10 |
|
- | ||||
| 4 | 64856-1 | Bracket, Fan Motor | 10 |
|
- | ||||
| 5 | W11233072 | Screw (Replaces: 400015-36) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 69107-1 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 7 | 420092-900 | Washer, Spring | 10 |
|
- | ||||
| 8 | 60608-2 | Orifice, Fan Blade | 10 |
|
- | ||||
| 9 | 70208-3 | Tunnel, Air | 10 |
|
- | ||||
| 9 | 66325-37 | Seal, Air Tunnel | 10 |
|
- | ||||
| 10 | W11233072 | Screw (Replaces: 400015-31) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 66403-9 | Cover, Evaporator | 10 |
|
- | ||||
| 12 | 69397-2 | Bottom, Frz. | 10 |
|
- | ||||
| 13 | 67142-3 | Shelf, Frz. (plastic) | 10 |
|
- | ||||
| 14 | 67176-59 | Trim, Shelf | 10 |
|
- | ||||
| 15 | 67419-1 | Divider | 10 |
|
- | ||||
| 16 | 406008-1 | Screw | 10 |
|
- | ||||
| 17 | 60313-1 | Cup, Shelf | 10 |
|
- | ||||
| 17 | 67466-1 | Cup, Shelf | 10 |
|
- | ||||
| 18 | 67696-4 | Shelf, Frz. (wire) | 10 |
|
- | ||||
| 19 | 67420-1 | Support, Divider | 10 |
|
- | ||||
| 20 | 67657-3 | Guide, Divider | 10 |
|
- | ||||
| 21 | 69563-1 | Seal, Frost Chest Bottom | 10 |
|
- | ||||
| 22 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-7) | 10 |
|
$ 11.19 | ||||
| 23 | 61664805 | Cover, Plenum | 10 |
|
- | ||||
| 24 | W11384469 | Switch, Light (Replaces: 66987-1) | 10 |
|
Immediately | $ 33.51 | |||
| 25 | 67240-1 | Shield, Light | 10 |
|
- | ||||
| 26 | 68974-3 | Receptacle, Bulb | 10 |
|
- | ||||
| 27 | 67361-1 | Deflector, Light | 10 |
|
- | ||||
| 28 | 67006425 | Screw (Replaces: 400017-35) | 10 |
|
Immediately | $ 6.26 | |||
| 28 | 67241-2 | Base, Light | 10 |
|
- | ||||
| 29 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) | 10 |
|
$ 9.95 | ||||
| 30 | W11679940 | Bulb, Light (Replaces: 31956-1) | 10 |
|
Immediately | $ 10.17 | |||
| 31 | WP489069 | Screw (Replaces: 65275-50) | 10 |
|
Immediately | $ 7.07 | |||
| 31 | W10833902 | Clamp, Tubing (Replaces: 53516-8) | 10 |
|
$ 9.89 | ||||
| 32 | 68307-1 | Grommet, Water Entry | 10 |
|
- | ||||
| 33 | 69562-2 | Seal, Mullion Tray (front) | 10 |
|
- | ||||
| 34 | 69413-2 | Magnet | 10 |
|
- |
