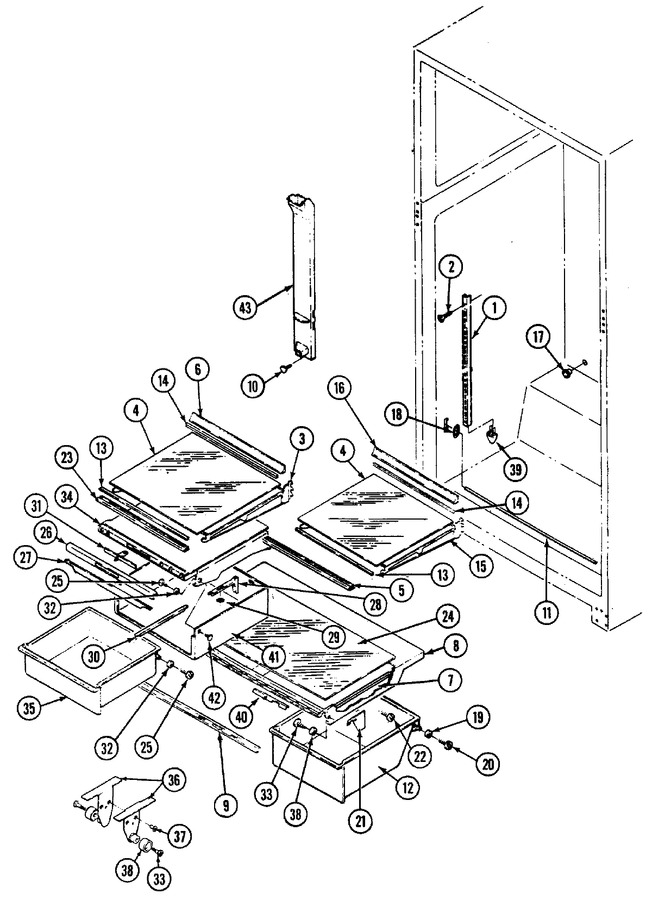

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60096-8 | Rail, Shelf Support (rt) | 10 |
|
- | ||||
| 1 | 60096-9 | Rail, Shelf Support (center) | 10 |
|
- | ||||
| 1 | 60096-7 | Rail, Shelf Support (lt) | 10 |
|
- | ||||
| 2 | 400037-28 | Screw | 10 |
|
- | ||||
| 3 | 67269-2 | Frame, Shelf | 10 |
|
- | ||||
| 4 | 67267-14 | Glass, Shelf | 10 |
|
- | ||||
| 5 | 67783-34 | Trim, Shelf (front) | 10 |
|
- | ||||
| 6 | 67309-50 | Trim, Shelf (rear) | 10 |
|
- | ||||
| 7 | 69779-3 | Seal, Crisper Shelf (side) | 10 |
|
- | ||||
| 8 | 70042-2 | Shelf, Crisper | 10 |
|
- | ||||
| 9 | 70336-3 | Trim, Crisper Shelf | 10 |
|
- | ||||
| 10 | W11233072 | Screw (Replaces: 400015-31) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 68756-2 | U-rail, Crisper Shelf Support | 10 |
|
- | ||||
| 12 | 69928-13 | Pan, Crisper (fresh Crisper) | 10 |
|
- | ||||
| 12 | 69928-17 | Pan, Crisper | 10 |
|
- | ||||
| 13 | 67265-2 | Seal, Shelf (front) | 10 |
|
- | ||||
| 14 | 67266-2 | Seal, Shelf (rear) | 10 |
|
- | ||||
| 15 | 67270-2 | Frame, Split Shelf | 10 |
|
- | ||||
| 16 | 67309-49 | Trim, Shelf (rear) | 10 |
|
- | ||||
| 17 | 67163-1 | Grommet, Crisper Shelf | 10 |
|
- | ||||
| 18 | 68757-1 | Cup, U-rail Support | 10 |
|
- | ||||
| 19 | 67423-2 | Roller | 10 |
|
$ 20.83 | ||||
| 20 | 65275-6 | Screw | 10 |
|
$ 5.48 | ||||
| 21 | 67895-1 | Support, Crisper Shelf (lt) | 10 |
|
- | ||||
| 21 | 67895-2 | Support, Crisper Shelf (rt) | 10 |
|
- | ||||
| 22 | 65275-28 | Screw | 10 |
|
- | ||||
| 23 | 67783-34 | Trim, Shelf (front) | 10 |
|
- | ||||
| 24 | 67489-13 | Glass, Cripser Shelf | 10 |
|
- | ||||
| 25 | 65275-6 | Screw | 10 |
|
$ 5.48 | ||||
| 26 | 67071-8 | Trim, Meat Pan Support | 10 |
|
- | ||||
| 27 | 67677-2 | Seal, Meat Pan | 10 |
|
- | ||||
| 28 | 67072-11 | Actuator, Meat Pan | 10 |
|
- | ||||
| 29 | 431019-511 | Nut | 10 |
|
- | ||||
| 30 | 67073-4 | Linkage, Meat Pan | 10 |
|
- | ||||
| 31 | 67074-2 | Slide, Control | 10 |
|
- | ||||
| 32 | 67423-2 | Roller | 10 |
|
$ 20.83 | ||||
| 33 | 65275-34 | Screw | 10 |
|
- | ||||
| 34 | 67649-13 | Support, Meat Pan | 10 |
|
- | ||||
| 35 | 69928-3 | Pan, Meat | 10 |
|
- | ||||
| 36 | 67464-2 | Bracket, Center Roller | 10 |
|
- | ||||
| 37 | WP210720 | Rivet (Replaces: 26397-6) | 10 |
|
$ 12.14 | ||||
| 38 | 67423-2 | Roller | 10 |
|
$ 20.83 | ||||
| 39 | 60340-1 | End Cap, Center Rail | 10 |
|
- | ||||
| 40 | 67491-2 | Slide, Control | 10 |
|
- | ||||
| 41 | 67069-10 | Housing, Meat Pan | 10 |
|
- | ||||
| 42 | 67688-3 | Plug Button | 10 |
|
$ 4.83 | ||||
| 43 | 69574-1 | Tunnel, Air (meat) | 10 |
|
- |
