SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer

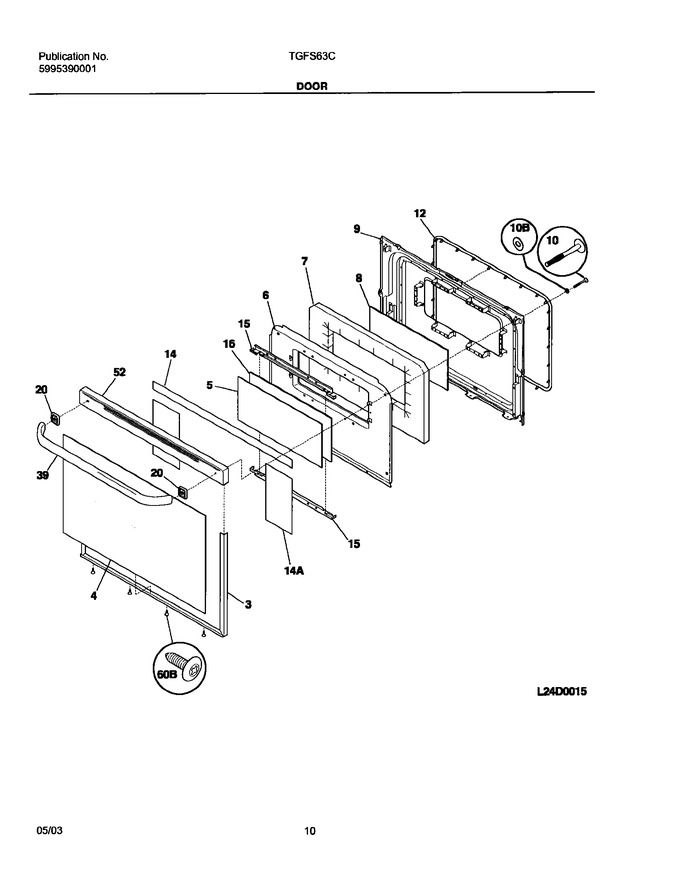

11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935191		Trim Kit-door,3 Sided ,black ,w/tape And Foil				$ 141.75
4	5303935203		Glass,door Kit ,black ,outer ,w/ Foil Tape				$ 211.91
5	316088700		Glass,oven Door ,airwash				$ 70.17
6	316222706		Shield,wool ,oven Door		Appelez-nous	-
7	316236800		Insulation,oven Door		Appelez-nous	-
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316230604		Liner,oven Door		Appelez-nous	-
10	316001014		Screw,waf Hd Sq `10-24 X 1.6 ,handle ,(2)			Immediately	$ 47.03
12	316277900		Seal,oven Door   (Replaces: 316230901)				$ 138.92
14	316574603		Foil,1.5`` X 29`` ,aluminum ,black   (Replaces: 316102208)				$ 21.23
15	316081403		Bracket,glass Mtg		Appelez-nous	-
16	316085701		Glass,oven Door ,heat Barrier				$ 131.41
20	316248400		Spacer,handle ,black ,(2)		Appelez-nous	-
39	5304529996		Handle,oven Door ,black   (Replaces: 316248300)				$ 156.11
52	316491201		Cap,door Trim ,black   (Replaces: 316201005)				$ 99.94
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
14A	5303208655		Reflector,aluminum Foil ,black Door		Appelez-nous	-
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316221001		Label,anti-tip		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46

    View Diagram in Separate Window       Print Part List
