Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 69463-1 Liner, Frz. Door 10 Appelez-nous -
1 65275-5 Screw 10 Appelez-nous -
2 70025-1 Gasket, Frz. Door 10 Appelez-nous -
3 69999-1 Retainer, Gasket (side) 10 Appelez-nous -
4 69999-4 Retainer, F.f Gasket (top/btm) 10 Appelez-nous -
5 61001183 Trim, Door Shelf 10 Appelez-nous -
6 67213-2 Endcap, Shelf Trim (wht) 10 Special Order $ 12.64


    View Diagram in Separate Window     Print Icon   Print Part List

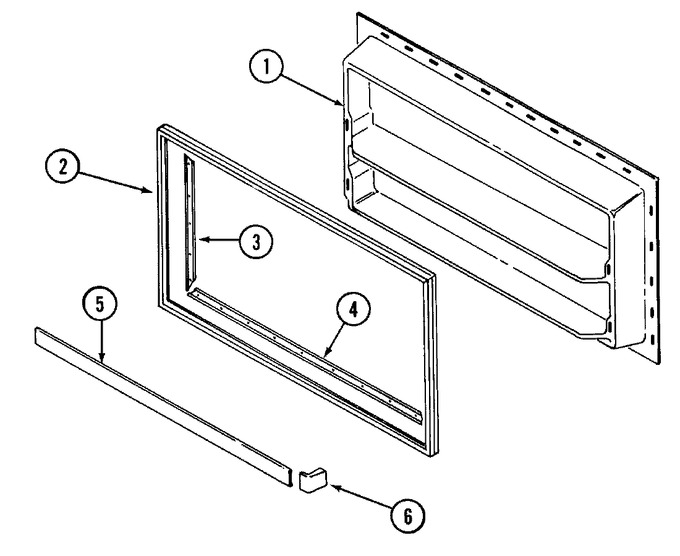

Diagram for RTM1500DAE
