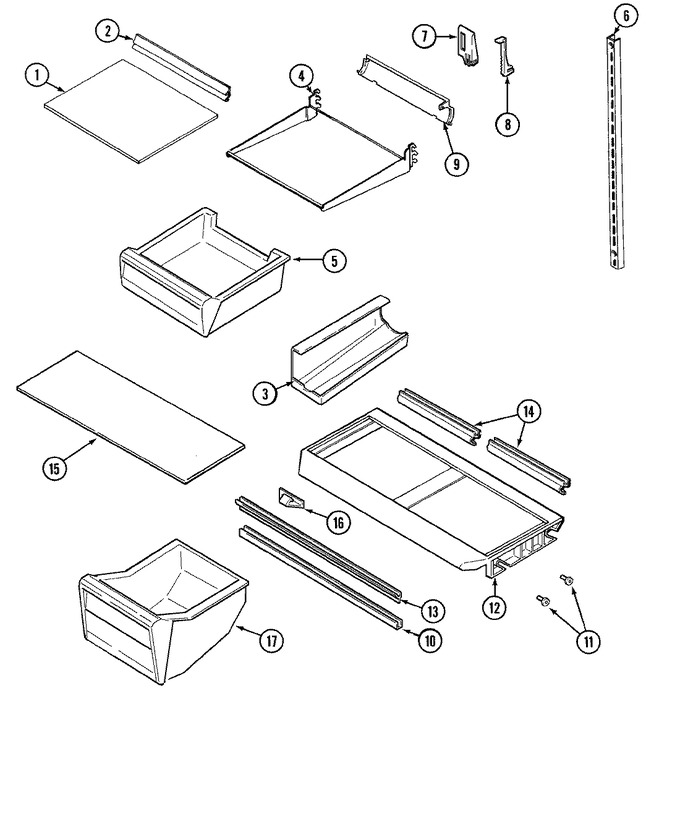

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61002482		Glass, Shelf	10	Appelez-nous	-
2	61002475		Trim, Meat Shelf (rear)	10	Appelez-nous	-
3	61002657		Holder, Beverage	10	Appelez-nous	-
4	61002485		Frame, Split Shelf	10	Appelez-nous	-
4	61002484		Frame, Meat Shelf	10	Appelez-nous	-
5	61004336		Pan, Meat	10	Appelez-nous	-
6	61002253		Rail, Cant. Shelf	10	Appelez-nous	-
6	400037-28		Screw	10	Appelez-nous	-
6	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
6	61002254		Rail, Shelf Support (lt/rt)	10	Appelez-nous	-
7	61002562		Control, Meat Pan	10	Appelez-nous	-
8	61002563		Slide, Control (meat)	10	Appelez-nous	-
9	61002806		Scoop, Meat Pan	10	Appelez-nous	-
10	61002309		Rail, Crisper Support	10	Appelez-nous	-
11	67764-1		Support, Crisper Shelf	10			$ 8.05
11	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
12	61002391		Shelf, Crisper	10	Appelez-nous	-
13	61002389		Seal, Crisper Shelf (frt)	10	Appelez-nous	-
14	61002390		Seal, Crisper (rear)	10	Appelez-nous	-
15	61002392		Glass, Crisper	10	Appelez-nous	-
16	61002187		Control, Humidity	10	Appelez-nous	-
17	61002393		Pan, Crisper	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
