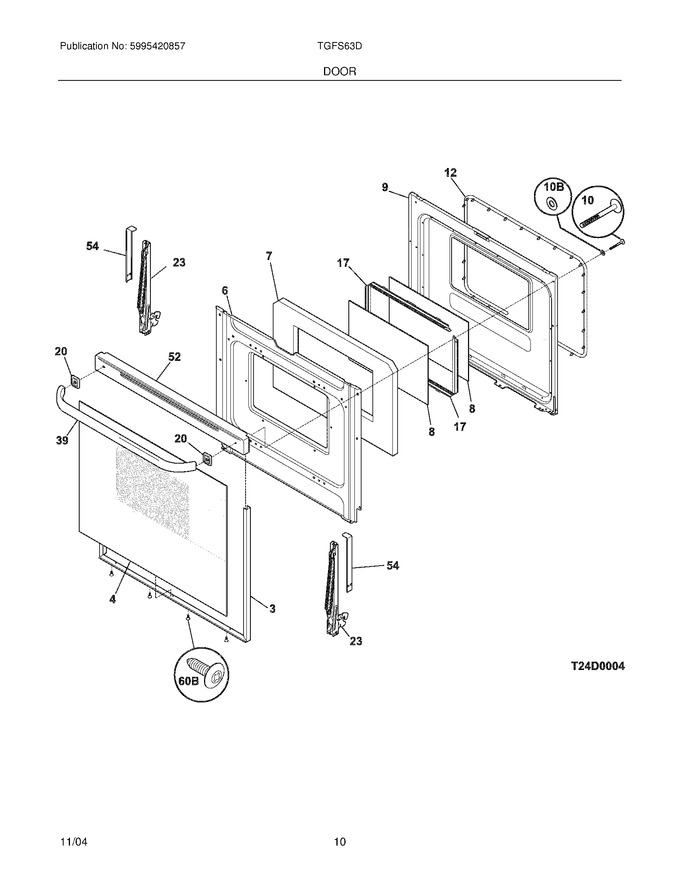

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316402003		Trim,oven Door ,bisque				$ 81.01
4	316402605		Glass,door ,bisque		Appelez-nous	-
6	316402305		Shield,wool		Appelez-nous	-
7	316403901		Insulation,oven Door		Appelez-nous	-
8	316427700		Glass,oven Door ,inner				$ 178.09
9	316401905		Liner,oven Door		Appelez-nous	-
10	316001009		Screw,waf Hd Sq `10-24 X 1.88 ,(2) ,handle Mtg				$ 15.17
12	5304498835		Seal,oven Door   (Replaces: 316403101)			Immediately	$ 88.74
17	316408801		Spacer,door Glass ,(2)		Appelez-nous	-
20	316248403		Spacer,handle ,bisque ,(2)		Appelez-nous	-
23	316406908		Hinge,oven Door		Appelez-nous	-
39	316248304		Handle,oven Door ,bisque		Appelez-nous	-
52	316405102		Cap,door Trim ,bisque		Appelez-nous	-
54	316427801		Deflector,door Hinge ,(2)		Appelez-nous	-
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316433603		Label,anti-tip				$ 3.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
