02 - Tub And Basket


03 - Top And Console


04 - Drive


05 - Cabinet


06 - Water Pump , Water System (suds Only)


07 - Gearcase


08 - Basket Drive And Brake


09 - Water System (non Suds Only)


10 - Miscellaneous , Literature And Optional

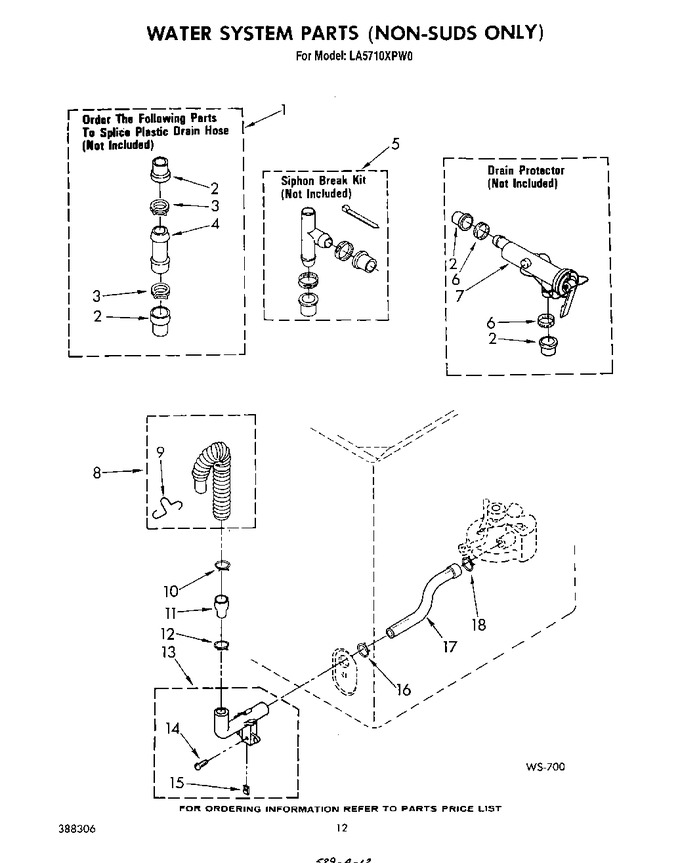

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	285442		Connector Kit, Plastic Drain Hose				$ 84.62
2	285321		Sleeve Kit, Plastic Drain Hose (contains 2 Sleeves)				$ 75.52
3	WP285655		Clamp, Hose   (Replaces: 370447)			Immediately	$ 7.55
4	WP16272		Connector Straight   (Replaces: 16272)				$ 7.04
5	76660		Siphon Break Kit (not Included)   (Replaces: 285320)			Immediately	$ 119.93
6	WP285655		Clamp, Hose   (Replaces: 65349)			Immediately	$ 7.55
7	367031		Drain Protector		Appelez-nous	-
8	285666		Hose, Corrugated Plastic Drain (10 Ft.)   (Replaces: 388418)			Immediately	$ 56.11
8	285664		Hose, Corrugated Plastic Drain (5-1/2 Ft.)   (Replaces: 387325)			Immediately	$ 33.20
9	357247		Retainer, Hose		Appelez-nous	-
10	WP616099		Clamp, Hose   (Replaces: 371504)			Immediately	$ 7.03
11	WP384496		Coupling, Hose   (Replaces: 384496)				$ 77.48
12	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
13	358805		Connector, Hose		Appelez-nous	-
14	90876		Screw, Connector Mounting		Appelez-nous	-
15	351395		Clip		Appelez-nous	-
16	WP356138		Clamp, Hose   (Replaces: 272856)			Immediately	$ 7.67
17	21114		Hose, Pump To Cabinet		Appelez-nous	-
18	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
