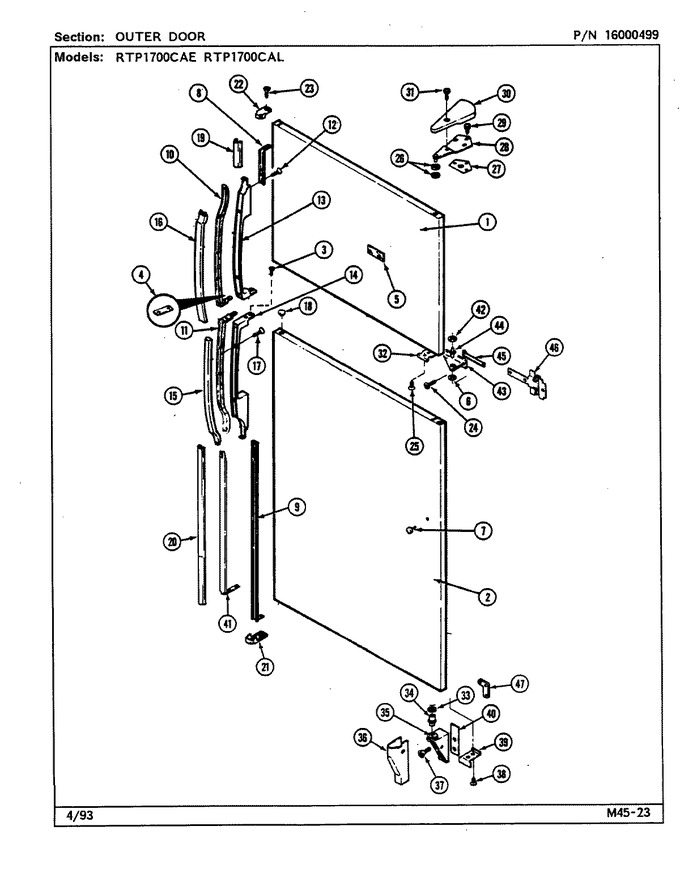

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72342-102-AM | Panel, Frz. Door (alm) | 10 |
|
- | ||||
| 2 | 72342-3-AM | Panel, F.f. Door (alm) | 10 |
|
- | ||||
| 3 | 65275-22 | Screw | 10 |
|
- | ||||
| 4 | 67934-1 | Shim, Handle | 10 |
|
- | ||||
| 5 | 69995-3 | Nameplate (alm) | 10 |
|
- | ||||
| 6 | 54233-7 | Washer | 10 |
|
- | ||||
| 7 | 67678-3 | Plug Button, Handle Top (alm) | 10 |
|
- | ||||
| 8 | 67927-2 | Shim, Trim Lock (frz.) | 10 |
|
- | ||||
| 9 | 65275-26 | Screw (no.12 X 5/8``) | 10 |
|
- | ||||
| 9 | 67927-5 | Shim, Trim Lock (f.f.) | 10 |
|
- | ||||
| 10 | 67921-3 | Frame, Frz Handle | 10 |
|
- | ||||
| 11 | 67921-1 | Frame, F.f. Handle | 10 |
|
- | ||||
| 12 | W10856122 | Screw (Replaces: 65275-65) | 10 |
|
$ 6.98 | ||||
| 13 | 67923-1 | Handle, Door | 10 |
|
- | ||||
| 14 | 67923-1 | Handle, Door | 10 |
|
- | ||||
| 15 | 67925-6 | Insert, Handle (alm) | 10 |
|
- | ||||
| 16 | 67925-6 | Insert, Handle (alm) | 10 |
|
- | ||||
| 17 | 65275-44 | Screw | 10 |
|
- | ||||
| 18 | 69480-4 | Plug Button (alm) | 10 |
|
- | ||||
| 18 | 67634-3 | Plug Button, Hinge Cup (alm) | 10 |
|
- | ||||
| 19 | 67932-15 | Trim, Ext. | 10 |
|
- | ||||
| 20 | 67932-18 | Trim, Ext. | 10 |
|
- | ||||
| 21 | 67930-1 | End Cap, F.f. Handle | 10 |
|
- | ||||
| 22 | 67929-1 | End Cap, Frz. Handle | 10 |
|
- | ||||
| 23 | 65275-22 | Screw | 10 |
|
- | ||||
| 24 | 65275-62 | Screw | 10 |
|
- | ||||
| 25 | 65275-48 | Screw | 10 |
|
- | ||||
| 26 | 54233-2 | Washer | 10 |
|
- | ||||
| 27 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 28 | 56144-9 | Plug Button, Hinge Screw (alm) | 10 |
|
- | ||||
| 28 | 53709-20 | Hinge, Upper | 10 |
|
- | ||||
| 29 | WP3-24838-048 | Screw (Replaces: 65275-52) | 10 |
|
$ 7.00 | ||||
| 30 | 69518-3 | Cover, Upper Hinge (alm) | 10 |
|
- | ||||
| 31 | 408062-1 | Screw | 10 |
|
- | ||||
| 32 | 69256-2 | Stop, Door | 10 |
|
- | ||||
| 33 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 10 |
|
Immediately | $ 45.86 | |||
| 34 | 69845-1 | Pin, Lower Hinge | 10 |
|
$ 44.55 | ||||
| 35 | 69516-4 | Hinge, Lower (zinc) | 10 |
|
- | ||||
| 36 | 68978-3 | Cover, Lower Hinge (alm) | 10 |
|
- | ||||
| 37 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 38 | 65275-48 | Screw | 10 |
|
- | ||||
| 39 | 69256-2 | Stop, Door | 10 |
|
- | ||||
| 40 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 41 | 67933-2 | Support, Shim | 10 |
|
- | ||||
| 42 | 67483-6 | Washer | 10 |
|
- | ||||
| 43 | 69602-1 | Hinge, Center | 10 |
|
- | ||||
| 44 | 69517-1 | Pin, Center Hinge | 10 |
|
- | ||||
| 45 | 69605-1 | Shim, Center Hinge | 10 |
|
- | ||||
| 46 | 69419-1 | Tapping Plate, Center Hinge | 10 |
|
- | ||||
| 46 | 65275-61 | Screw | 10 |
|
- | ||||
| 47 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 47 | 65275-59 | Screw | 10 |
|
- |
