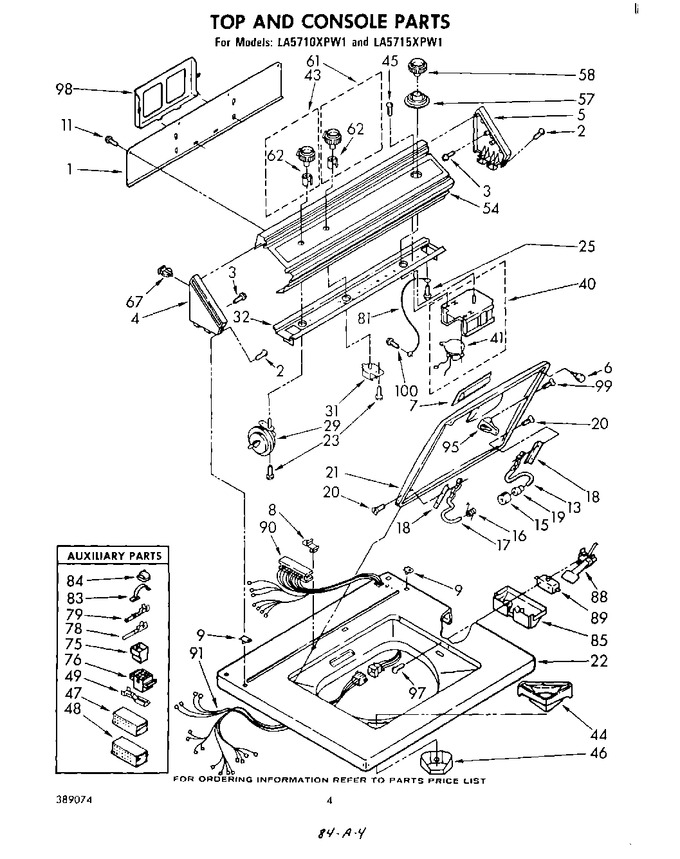

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	386367		Panel, Rear		Appelez-nous	-
2	WP388326		Screw, 8-18 X 1   (Replaces: 64211)				$ 7.30
3	355326		Screw, 13-16 X 5/8		Appelez-nous	-
4	63789		Cap, End (l.h.)		Appelez-nous	-
5	63795		Cap, End. (r.h.)				$ 14.10
6	WP9724509		Bumper, Rubber   (Replaces: 93770)			Immediately	$ 7.14
7	379890		Handle, Lid (toast)		Appelez-nous	-
7	379884		Handle, Lid (white)		Appelez-nous	-
7	379885		Handle, Lid (almond)		Appelez-nous	-
7	379888		Handle, Lid (golden Harvest)		Appelez-nous	-
7	379891		Handle, Lid (platinum)		Appelez-nous	-
8	358472		Stop, Push-in Top (1)		Appelez-nous	-
9	358473		Nut, Push-in (2)				$ 5.84
11	W11693756		Screw, 8-15 X 1/2   (Replaces: 359625)			Immediately	$ 12.65
13	WP91770		Hinge, R.h.   (Replaces: 91770)				$ 24.71
15	91605		Bumper, Lid Hinge		Appelez-nous	-
16	DE81-05611A		Spring, Hinge (l.h.)   (Replaces: 92398)				$ 150.30
17	91099		Hinge, L.h.		Appelez-nous	-
18	WP21097		Pad, Hinge   (Replaces: 21097)				$ 7.02
19	WP21258		Bearing, Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
20	WPW10119828		Screw   (Replaces: 18724)			Immediately	$ 6.47
21	384728		Lid (platinum)		Appelez-nous	-
21	384725		Lid (white)		Appelez-nous	-
21	384726		Lid (almond)		Appelez-nous	-
21	384729		Lid (golden Harvest)		Appelez-nous	-
21	384727		Lid (toast)		Appelez-nous	-
22	386910		Top (white)		Appelez-nous	-
22	386913		Top (platinum)		Appelez-nous	-
22	386912		Top (toast)		Appelez-nous	-
22	386914		Top (golden Harvest)		Appelez-nous	-
22	386911		Top (almond)		Appelez-nous	-
23	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
25	WP3351614		Screw, 10 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
29	363301		Switch, Water Level (alt.)		Appelez-nous	-
29	359647		Switch, Water Level (alternate)		Appelez-nous	-
31	370146		Switch, Water Temperature (alt.)		Appelez-nous	-
31	370145		Switch, Water Temperature (alt.)		Appelez-nous	-
31	660393		Switch, Water Temperature		Appelez-nous	-
32	386627		Bracket, Control		Appelez-nous	-
40	386886		Timer, 60 Hz. (alt.) (non-suds) (mallory)		Appelez-nous	-
40	660992		Timer, 60 Hz.		Appelez-nous	-
40	386883		Timer, 60 Hz. (alt.) (non-suds) (c.c.a.)		Appelez-nous	-
41	63491		Motor, Timer (60 Hz.) (use W/mallory Timer)		Appelez-nous	-
41	63493		Motor, Timer (60 Hz.) (use W/c.c.a. Timer)		Appelez-nous	-
43	386629		Knob Assembly Water Level		Appelez-nous	-
44	352821		Bezel, Dispenser		Appelez-nous	-
45	WP356418		Screw, 10-32 X 5/16   (Replaces: 96435)				$ 7.13
46	352827		Tray, Dispenser		Appelez-nous	-
47	W10876590		Block, Disconnect   (Replaces: 352089)				$ 11.48
48	352090		Block, Disconnect		Appelez-nous	-
49	352088		Terminal, Female				$ 5.83
54	387790		Panel, Control (non-suds)		Appelez-nous	-
54	387791		Panel, Control (suds)		Appelez-nous	-
57	387183		Dial, Timer				$ 35.42
58	386570		Knob, Timer		Appelez-nous	-
61	386630		Knob Assembly, Water Temperature				$ 65.25
62	WP688805		Clip, Control Knob   (Replaces: 688805)			Immediately	$ 7.03
67	689559		Clip, End Cap		Appelez-nous	-
75	94612		Cap, Terminal (console Harness)		Appelez-nous	-
76	94611		Plug, Terminal (cabinet Harness)		Appelez-nous	-
78	94613		Terminal, (male)		Appelez-nous	-
79	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
81	3184020		Wire, Ground   (Replaces: 54570)				$ 74.50
83	WP98997		Clip   (Replaces: 98997)				$ 9.98
84	WP90016		Clip   (Replaces: 90016)				$ 10.19
85	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
88	370959		Switch Actuator Assembly				$ 33.01
89	W10820036		Switch, Lid (alt.)   (Replaces: 367034)			Immediately	$ 27.45
89	W10820036		Switch, Lid   (Replaces: 660308)			Immediately	$ 27.45
89	00-6163		Switch, Lid (alt.)   (Replaces: 364090)				$ 22.92
89	W10820036		Switch, Lid (alt.)   (Replaces: 364091)			Immediately	$ 27.45
89	387268		Harness, Console (non-suds)		Appelez-nous	-
90	388797		Harness, Console (suds)		Appelez-nous	-
91	358115		Harness, Base		Appelez-nous	-
91	88401		Harness, Cabinet (suds)		Appelez-nous	-
95	357633		Strike, Lid Switch		Appelez-nous	-
97	354764		Screw & Washer		Appelez-nous	-
98	63020		Rack, Literature				$ 30.32
99	354975		Screw & Washer		Appelez-nous	-
100	WP681414		Ground Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
	386884		Timer, 60 Hz. (c.c.a.) (suds)		Appelez-nous	-
