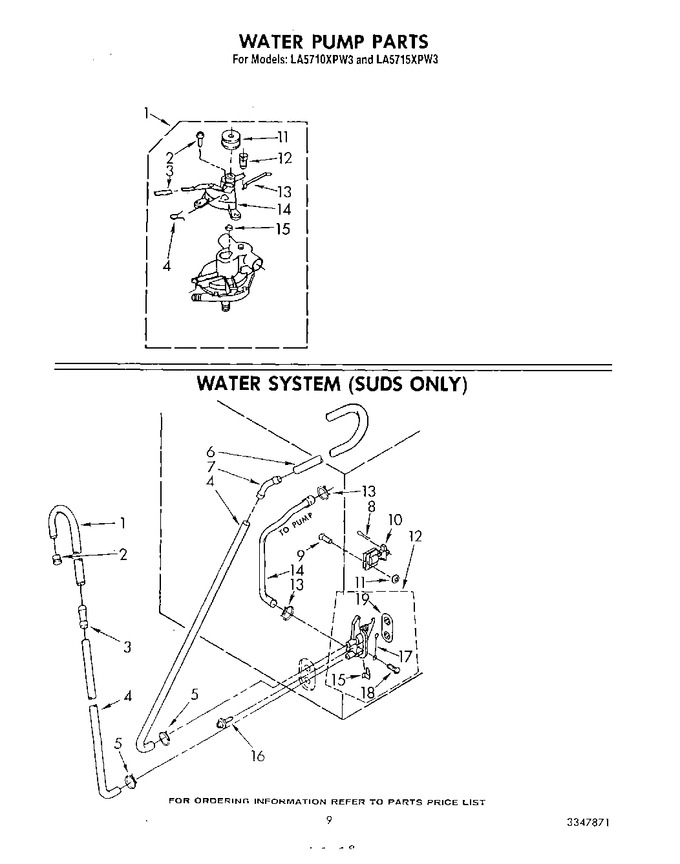

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	388798		Hose, Gooseneck		Appelez-nous	-
1	362175		Pump Assembly (suds) (4 Port)		Appelez-nous	-
1	357729		Pump Assembly (non-suds) (3 Port)		Appelez-nous	-
2	352833		Strainer, Hose		Appelez-nous	-
2	WP273556		Screw, 10-12 X 5/8   (Replaces: 273556)			Immediately	$ 7.04
3	WP16272		Connector, Hose   (Replaces: 16272)				$ 7.04
3	96175		Sleeve		Appelez-nous	-
4	96266		Spring, Toggle		Appelez-nous	-
4	96746		Hose, Outlet				$ 71.22
5	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
6	WP96743		Hose, Drain   (Replaces: 96743)				$ 90.93
7	95440		Connector, Hose				$ 22.55
8	90228		Pin, Cotter (1/8 X 3/4)		Appelez-nous	-
9	359089		Rivet		Appelez-nous	-
10	DE81-09913A		Solenoid   (Replaces: 86798)				$ 33.80
11	359630		Pulley		Appelez-nous	-
11	WP90296		Clip   (Replaces: 90296)				$ 7.07
12	359634		Two-way Valve		Appelez-nous	-
12	355538		Lever, Valve		Appelez-nous	-
13	96264		Rod, Connecting		Appelez-nous	-
13	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
14	21115		Hose, Pump To Valve		Appelez-nous	-
14	383750		Bearing Block Assembly		Appelez-nous	-
15	96262		Clip, Retainer (8)		Appelez-nous	-
15	96265		Wick, Oil		Appelez-nous	-
16	190575		Screw & Washer		Appelez-nous	-
17	358343		Strap, Ground		Appelez-nous	-
18	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.04
19	358317		Diaphragm, Valve		Appelez-nous	-
