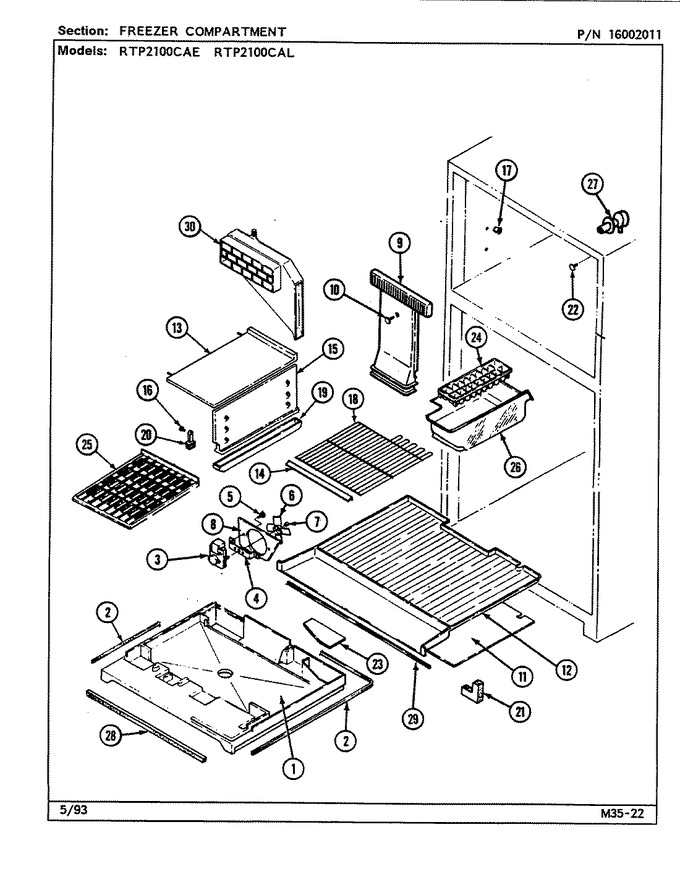

01 - Freezer Compartment
02 - Fresh Food Compartment
03 - Inner Door
04 - Optional Ice Maker
05 - Outer Door
06 - Shelves & Accessories
07 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69404-1 | Tray, Styrofoam Mullion | 10 |
|
- | ||||
| 2 | 69414-3 | Seal, Mullion Tray | 10 |
|
- | ||||
| 2 | 67730-1 | Seal, Front Corner | 10 |
|
- | ||||
| 3 | 69106-2 | Motor, Evaporator Fan | 10 |
|
$ 95.45 | ||||
| 3 | 406062-1 | Screw | 10 |
|
- | ||||
| 4 | 64856-1 | Bracket, Fan Motor | 10 |
|
- | ||||
| 5 | 400015-12 | Screw | 10 |
|
- | ||||
| 6 | 69107-1 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 7 | 420092-900 | Washer, Spring | 10 |
|
- | ||||
| 8 | 60608-2 | Orifice, Fan Blade | 10 |
|
- | ||||
| 9 | 67115-3 | Tunnel, Air (frz.) | 10 |
|
- | ||||
| 9 | 66325-34 | Seal, Air Tunnel----na | 10 |
|
- | ||||
| 10 | W11233072 | Screw (Replaces: 400015-31) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 67905-3 | Cover, Evaporator | 10 |
|
- | ||||
| 12 | 69398-2 | Bottom, Frz. | 10 |
|
- | ||||
| 13 | 67142-4 | Shelf, Frz. (plastic) | 10 |
|
- | ||||
| 14 | 67176-59 | Trim, Shelf | 10 |
|
- | ||||
| 15 | 67419-2 | Divider, Shelf | 10 |
|
- | ||||
| 16 | 406008-1 | Screw | 10 |
|
- | ||||
| 17 | 67466-1 | Cup, Shelf | 10 |
|
- | ||||
| 17 | 60313-1 | Cup, Shelf | 10 |
|
- | ||||
| 18 | 67696-5 | Shelf, Frz. (wire) | 10 |
|
- | ||||
| 19 | 67648-1 | Support, Divider | 10 |
|
- | ||||
| 20 | 67657-3 | Guide, Divider | 10 |
|
- | ||||
| 21 | 69563-1 | Seal, Frost Chest Bottom | 10 |
|
- | ||||
| 22 | 70146-1 | Plug Button, Ice Maker | 10 |
|
- | ||||
| 23 | 66480-5 | Cover, Plenum | 10 |
|
- | ||||
| 24 | WP841180A | Tray, Ice (Replaces: 59281-5) | 10 |
|
Immediately | $ 41.00 | |||
| 25 | 67114-5 | Shelf, Ice Tray | 10 |
|
- | ||||
| 26 | 69919-2 | Pan, Ice | 10 |
|
- | ||||
| 27 | 67855-1 | Plug, Grommet | 10 |
|
- | ||||
| 27 | 68307-1 | Grommet, Water Entry | 10 |
|
- | ||||
| 28 | 69562-2 | Seal, Mullion Tray (front) | 10 |
|
- | ||||
| 29 | 69413-2 | Magnet | 10 |
|
- | ||||
| 30 | 67625-1 | Duct, Air | 10 |
|
- | ||||
| 30 | 68187-1 | Cap, Connector | 10 |
|
- | ||||
| 30 | 400026-36 | Screw | 10 |
|
- |
