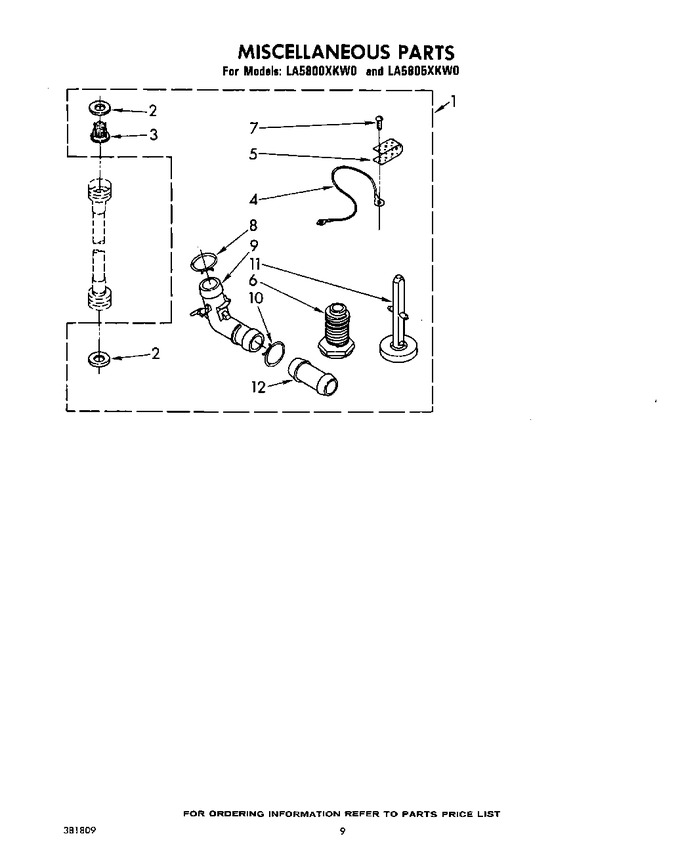

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 375962 | Miscellaneous Parts Bag (non-suds) |
|
- | |||||
| 1 | 375964 | Miscellaneous Parts Bag (suds) |
|
- | |||||
| 2 | WP16123 | Washer, Inlet Hose (1-1/16 X 5/8) (4) (Replaces: 16123) |
|
$ 6.93 | |||||
| 4 | 364089 | Wire, Ground |
|
- | |||||
| 5 | 22965 | Strap, Ground |
|
- | |||||
| 6 | WP367594 | Foot, Front (2) (Replaces: 367594) |
|
Immediately | $ 18.46 | ||||
| 7 | 132848 | Screw, Ground (10-24 X 1) |
|
- | |||||
| 8 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 9 | 95440 | Connector, Hose |
|
$ 22.55 | |||||
| 10 | WP285655 | Clamp, Hose (Replaces: 370445) |
|
Immediately | $ 7.55 | ||||
| 11 | WP358594 | Foot, Rear (2) (Replaces: 358594) |
|
$ 12.24 | |||||
| 12 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 12 | 261888 | New Avocado |
|
- | |||||
| 12 | 261890 | Golden Harvest |
|
- | |||||
| 12 | 79935 | Thinner (1 Gal.) |
|
- | |||||
| 12 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 12 | 978883 | Almond (uncut) |
|
- | |||||
| 12 | 261889 | New Avocado (uncut) |
|
- | |||||
| 12 | 358770 | Guide, Laundry |
|
- | |||||
| 12 | 372845 | Instructions, Installation |
|
- | |||||
| 12 | 380480 | Instructions, Operating |
|
- | |||||
| 12 | 382271 | Label, Energy Guide (non-suds) |
|
- | |||||
| 12 | 382272 | Label, Energy Guide (suds) |
|
- | |||||
| 12 | 381809 | List, Repair Parts |
|
- | |||||
| 12 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 12 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 12 | 35094 | Leveler (thinner) |
|
- | |||||
| 12 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 12 | 261891 | Xgolden Harvest (uncut) |
|
- | |||||
| 12 | WP16272 | Connector, Hose (suds) (Replaces: 16272) |
|
$ 7.04 | |||||
| 12 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 12 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 12 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 |
