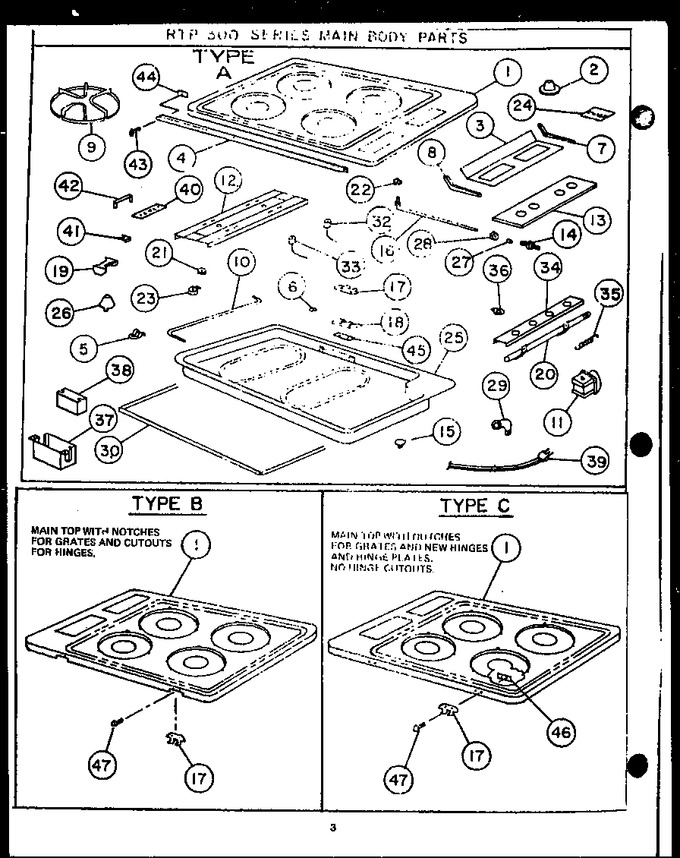

01 - Burner Parts
02 - Page 1
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 64564V | Above Serial Number 4433334 Ma |
|
- | |||||
| 1 | 0087785 | Kit, Main Top, S.s. W/grates |
|
- | |||||
| 1 | Y64563 | Above Sn 4433334 Main Top Only |
|
- | |||||
| 1 | Y087782C | Kit, Main Top, Dark Copper |
|
- | |||||
| 1 | 087782F | Kit, Main Top, Snow White |
|
- | |||||
| 1 | 087782N | Kit, Main Top, Almond |
|
- | |||||
| 1 | Y087782V | Kit, Main Top, Avocado |
|
- | |||||
| 1 | 0087781 | Kit, Main Top, S.s. |
|
- | |||||
| 1 | 87786D | Main Top Kit |
|
- | |||||
| 1 | 087786F | Kit, Main Top, Sn Wt, W/grates |
|
- | |||||
| 1 | 64564N | Above Serial Number 4433334 Ma |
|
- | |||||
| 1 | 64564F | Above Serial Number 4433334 Ma |
|
- | |||||
| 1 | 64564D | Above Serial Number 4433334 Ma |
|
- | |||||
| 1 | 64564C | Above Serial Number 4433334 Ma |
|
- | |||||
| 1 | 87782D | Above Serial Number 4066082 Ki |
|
- | |||||
| 1 | 87786V | Main Top Kit |
|
- | |||||
| 1 | 087786C | Kit, Main Top, Dk Cp, W/grates |
|
- | |||||
| 1 | 087786N | Kit, Main Top, Amd, W/grates |
|
- | |||||
| 2 | 69763 | Knob, Thermoset |
|
$ 140.05 | |||||
| 2 | 69657 | Knob, Top Burner |
|
$ 21.36 | |||||
| 3 | 69967 | Control Panel |
|
- | |||||
| 4 | 73116 | Handle, Main Top |
|
- | |||||
| 5 | 100097815 | Control Panel (Replaces: 73104) |
|
$ 8.26 | |||||
| 6 | 1N4004 | Washer (Replaces: 73119) |
|
- | |||||
| 7 | 73108 | Screw |
|
- | |||||
| 8 | 73109 | Shield |
|
- | |||||
| 9 | 73121 | Medallion |
|
- | |||||
| 9 | Y65514 | Grate - After Serial Number 40 |
|
- | |||||
| 10 | 73132 | Shield |
|
- | |||||
| 11 | 69636 | Pressure Regulator |
|
- | |||||
| 12 | 69649 | Channel, Burner Support, Blue |
|
- | |||||
| 13 | 69651 | Glass, Control Panel |
|
- | |||||
| 15 | 73120 | Fastener |
|
- | |||||
| 17 | 64588 | Hinge Wing, Type C |
|
- | |||||
| 17 | 73130 | Sub 42463 |
|
Immediately | $ 2.24 | ||||
| 18 | 64589 | Hinge, Fixed-main Top, Type C |
|
- | |||||
| 18 | 73129 | Shield |
|
- | |||||
| 20 | 69648 | Manifold |
|
Immediately | $ 17.61 | ||||
| 23 | 77078 | Front |
|
- | |||||
| 24 | 73111 | Shield |
|
- | |||||
| 25 | 69639 | Burner Box, Blue |
|
- | |||||
| 29 | 73084 | Glass Door |
|
- | |||||
| 30 | 77031 | Fastener |
|
- | |||||
| 32 | 69662 | Electrode Assembly, Rear Burne |
|
- | |||||
| 33 | 69661 | Electrode Assembly, Front Burn |
|
- | |||||
| 34 | 69654 | Actuator |
|
$ 26.50 | |||||
| 35 | 70919 | Spring |
|
- | |||||
| 36 | 69666 | Cam, Top Burner |
|
- | |||||
| 37 | 0095790 | Electrical Box |
|
- | |||||
| 38 | Y0091229 | Spark Module Kit |
|
- | |||||
| 39 | 69259 | Supply Cord |
|
- | |||||
| 40 | 69665 | Mounting Bracket, Electrode |
|
- | |||||
| 41 | 74685 | Clamp, Supply Cord |
|
- | |||||
| 42 | 1N4004 | Grounding Bracket, Electrode (Replaces: 70928) |
|
- | |||||
| 43 | 78419 | Screw, Mach. No. 6-32 X 1/2``, |
|
- | |||||
| 44 | 0097909 | Spee Nut Mount Brack To Frame |
|
- | |||||
| 45 | 30994 | Plate, Hinge Mtg. |
|
- | |||||
| 46 | 64587 | Hinge Plate - Main Top, Type C |
|
- | |||||
| 47 | Y71798 | Screw, Tap Type No. 6 X 1/4``, |
|
- | |||||
| 47 | 78419 | Screw, Mach. No. 6-32 X 1/2``, |
|
- | |||||
| NI | DD81-03545A | Hex Nut, End Cap (Replaces: 72658) |
|
$ 236.48 |
