01 - Freezer Compartment


02 - Fresh Food Compartment


03 - Inner Door


04 - Optional Ice Maker Kit (rae3100aax)


05 - Outer Door


06 - Shelves & Accessories


07 - Unit Compartment & System

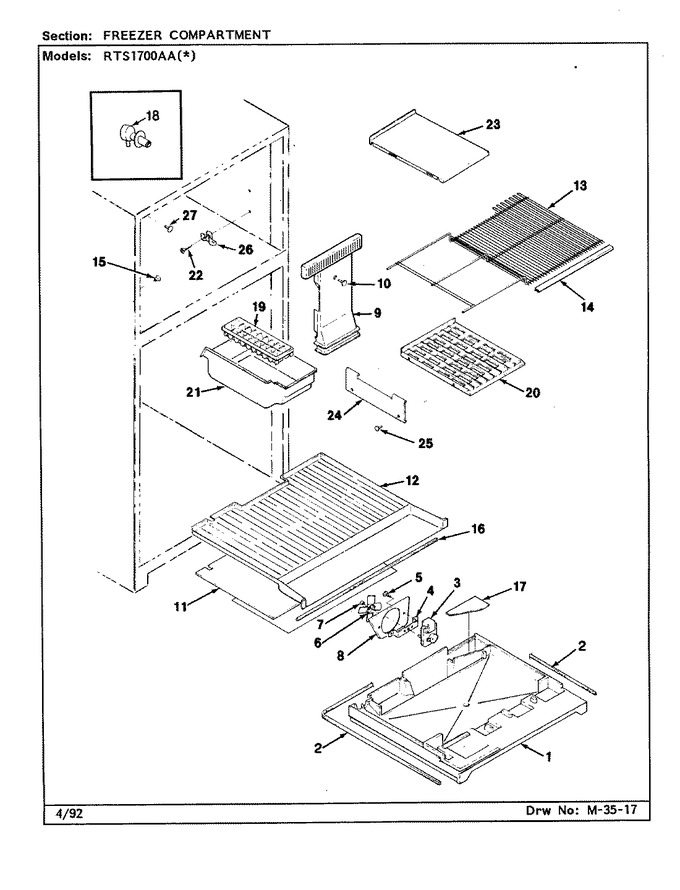

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	69123-1		Divider, Mullion	-	Appelez-nous	-
2	68866-5		Seal 72``	-	Appelez-nous	-
2	67730-1		Seal, Front Corner	-	Appelez-nous	-
3	WP61004888		Motor, Evaporator Fan   (Replaces: 54482-10)	-		Immediately	$ 104.99
3	406062-1		Screw	-	Appelez-nous	-
4	64856-1		Bracket, Fan Motor	-	Appelez-nous	-
5	400015-12		Screw	-	Appelez-nous	-
6	64359-1		Blade, Evaporator Fan	-	Appelez-nous	-
7	420092-900		Washer, Spring	-	Appelez-nous	-
8	60608-2		Orifice, Fan Blade	-	Appelez-nous	-
9	66325-29		Seal, Tunnel	-	Appelez-nous	-
9	67115-2		Tunnel, Air (frz)	-	Appelez-nous	-
10	W11233072		Screw   (Replaces: 400015-31)	-		Immediately	$ 12.62
11	66403-1		Cover, Evaporator	-	Appelez-nous	-
12	66460-1		Bottom, Frz.	-	Appelez-nous	-
13	67348-1		Shelf, Frz.	-	Appelez-nous	-
14	67176-5		Trim, Shelf	-	Appelez-nous	-
15	60313-1		Cup, Shelf	-	Appelez-nous	-
16	68946-1		Seal	-	Appelez-nous	-
17	66480-4		Cover, Plenum	-	Appelez-nous	-
18	67294-1		Grommet Water	-	Appelez-nous	-
19	WP841180A		Tray, Ice   (Replaces: 59281-5)	-		Immediately	$ 41.00
20	67114-1		Shelf, Ice Tray	-	Appelez-nous	-
21	67141-2		Pan, Ice	-	Appelez-nous	-
22	400019-1		Screw	-	Appelez-nous	-
23	67349-1		Shelf, Fill-in	-	Appelez-nous	-
24	67147-1		Side, Ice Tray Shelf	-	Appelez-nous	-
25	67150-1		Fastener, Divider	-	Appelez-nous	-
26	66101-1		Stud, Shelf	-	Appelez-nous	-
27	68187-1		Cap, Connector	-	Appelez-nous	-
27	67557-1		Plug Button	-	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
