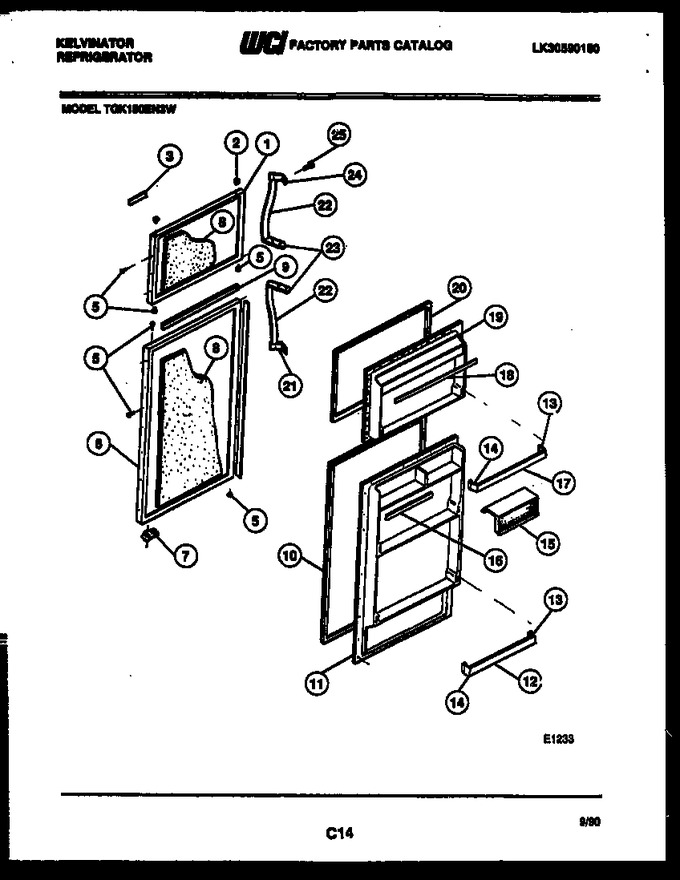

SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3916269		Freezer Door-avocado		Appelez-nous	-
2	5308000175		Plug-avocado		Appelez-nous	-
3	3205334		Nameplate-assy		Appelez-nous	-
5	5308000179		Plug-avocado (10)		Appelez-nous	-
6	3916274		Refr Door-avocado		Appelez-nous	-
7	5308000255		Door Stop (2)				$ 42.20
8	5303007739		Insulation, Bulk		Appelez-nous	-
9	3015602		Trim-refr Door		Appelez-nous	-
10	5308015544		Gasket-refr		Appelez-nous	-
11	5318350701		Inner Panel-refr		Appelez-nous	-
12	3015061		Rack-refr Door (2)		Appelez-nous	-
13	5317828701		Support-rh (3)				$ 8.18
14	5317828401		Support-lh (3)				$ 11.48
15	G161776-51		Dairy Door		Appelez-nous	-
16	3015603		Trim-door Shelf		Appelez-nous	-
16	5315340760		Tape-trim Mtg		Appelez-nous	-
17	3015060		Rack Frzr Door		Appelez-nous	-
18	3015063		Trim-juice Rack		Appelez-nous	-
19	5318350601		Inner Panel-frzr		Appelez-nous	-
19	218843801		Screw   (Replaces: 5303001001)				$ 14.41
20	5303001486		Gasket-frzr		Appelez-nous	-
21	5318945101		Handle, End-bottom		Appelez-nous	-
22	5303201377		Grip-handle (2)				$ 60.90
22	5303200995		Trim Insert-grip (2)		Appelez-nous	-
23	5318945301		Handle End, (2)		Appelez-nous	-
24	5318945201		Handle End-top		Appelez-nous	-
25	5308011745		Screw				$ 10.38
11A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
18A	5315340760		Tape-trim Mtg (non-illustrated)		Appelez-nous	-
1A	5308012007		Bearing-hinge (4) (non-illustrated)		Appelez-nous	-
6A	5308012007		Bearing-hinge (4) (non-illustrated)		Appelez-nous	-
7A	5308011745		Screw				$ 10.38

    View Diagram in Separate Window       Print Part List
