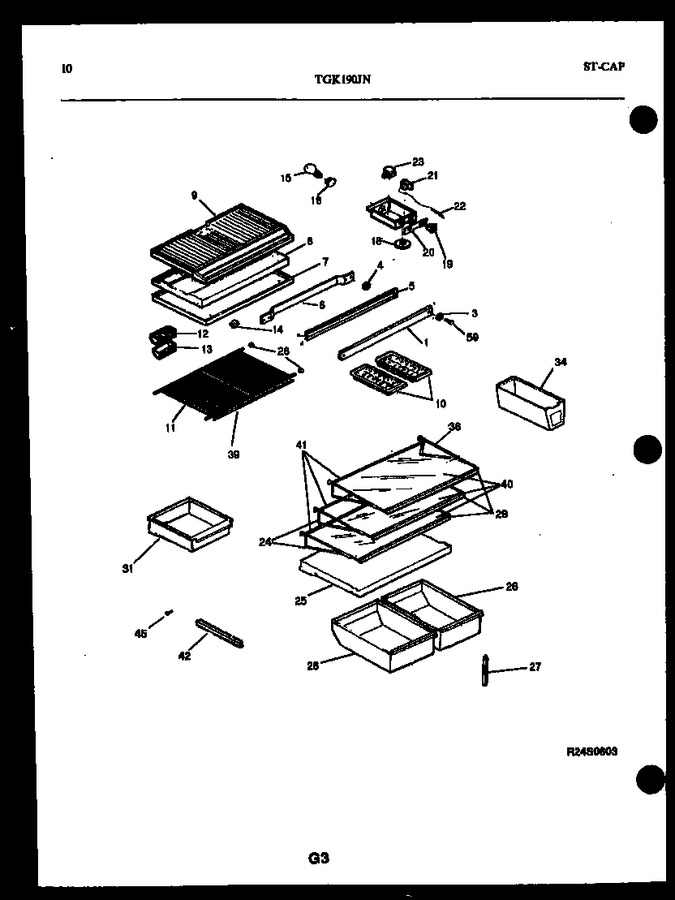

05 - Shelves And Parts
06 - Shelves And Support
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 36 | 5303274259 | Frame-meat Kpr Shelf, Cantilever |
|
- | |||||
| 39 | 5303273274 | Trim-frzr Shelf |
|
- | |||||
| 40 | 5303274261 | Shelf-glass, Full Shelf, (3) |
|
- | |||||
| 41 | 5303274257 | Trim-full Shelf, Snap-on, Rear, (3) |
|
- | |||||
| 42 | 5303209273 | Hanger-meat Pan, Rh |
|
$ 60.06 | |||||
| 45 | 08014528 | Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, (2) |
|
$ 4.31 | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| *20304 | 5300170910 | Clip-cantilever Shlf |
|
$ 2.60 | |||||
| 40A | 5303209274 | Retainer-glass, (3) (non-illustrated) |
|
- | |||||
| 41A | 5303211351 | Lock-rear Trim (non-illustrated) |
|
- | |||||
| 42A | 5303209272 | Hanger-meat Pan, Lh (non-illustrated) |
|
$ 90.83 |
