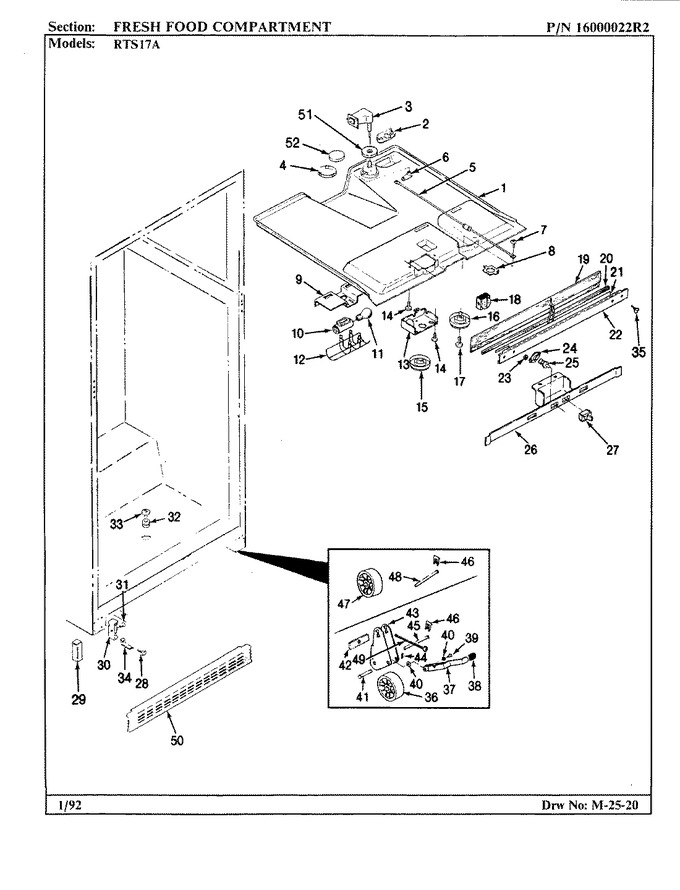

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67108-1 | Top, F.f. Compartment | - |
|
- | ||||
| 2 | 60120-3 | Air Deflector | - |
|
- | ||||
| 3 | 67915-1 | Orifice, Damper | - |
|
- | ||||
| 4 | 67493-1 | Cover, Crank | - |
|
- | ||||
| 5 | 67499-1 | Rod Pad Control | - |
|
- | ||||
| 6 | 67636-1 | Crank, Frz. Control | - |
|
- | ||||
| 7 | WP59002061 | Screw (Replaces: 65275-13) | - |
|
$ 6.98 | ||||
| 7 | 420005-1 | Washer, Control Rod | - |
|
- | ||||
| 8 | WP210720 | Rivet (Replaces: 26397-9) | - |
|
$ 12.14 | ||||
| 8 | 67703-1 | Bracket, Light | - |
|
- | ||||
| 9 | 67481-1 | Shield Heat | - |
|
- | ||||
| 10 | 67369-1 | Holder, Lamp | - |
|
- | ||||
| 11 | 40A15 | Bulb, Light (40 Watt) (Replaces: 31956) | - |
|
Immediately | $ 1.98 | |||
| 12 | 67541-1 | Retainer Light----na | - |
|
- | ||||
| 12 | 67190-1 | Guard, Light | - |
|
- | ||||
| 13 | 67169-1 | Cover Thermostat | - |
|
- | ||||
| 14 | 60319-3 | Anchor | - |
|
- | ||||
| 14 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 15 | 67245-1 | Knob, Control | - |
|
- | ||||
| 16 | 67244-1 | Knob Control | - |
|
- | ||||
| 17 | 420092-900 | Washer, Spring | - |
|
- | ||||
| 17 | W11233072 | Screw (Replaces: 405016-103) | - |
|
Immediately | $ 12.62 | |||
| 18 | 29675-33 | Ground Wire, Control | - |
|
- | ||||
| 18 | WP68601-6 | Control, Temperature (Replaces: 68119-5) | - |
|
Immediately | $ 233.80 | |||
| 18 | 406013-1 | Screw | - |
|
- | ||||
| 19 | 67482-1 | Insulation Mullion | - |
|
- | ||||
| 20 | 67478-1 | Seal | - |
|
- | ||||
| 21 | 67900-1 | Wire Harness | - |
|
- | ||||
| 21 | 67898-1 | Heater Wire | - |
|
- | ||||
| 21 | 67901-1 | Wire Harness | - |
|
- | ||||
| 22 | 67396-2 | Seal, Flange | - |
|
- | ||||
| 22 | 67247-4-AM | Mullion Front | - |
|
- | ||||
| 22 | 67247-4-WW | Mullion Front | - |
|
- | ||||
| 23 | 431041-505 | Nut, Push-on | - |
|
- | ||||
| 24 | 67360-1 | Ground Plate | - |
|
- | ||||
| 25 | 67724-1 | Switch, Plun | - |
|
- | ||||
| 26 | 402020-103 | Screw, Panel | - |
|
- | ||||
| 26 | 67251-1 | Facade, Control | - |
|
- | ||||
| 26 | 400015-103 | Screw | - |
|
- | ||||
| 27 | 67363-1 | Switch, Mullion | - |
|
- | ||||
| 28 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 29 | 67117-3 | Cover Hinge | - |
|
- | ||||
| 30 | 67854-2 | End Cap (l) | - |
|
- | ||||
| 30 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 30 | 67116-3 | Endcap, Kickplate | - |
|
- | ||||
| 30 | 67116-4 | End Cap, Kickplate | - |
|
- | ||||
| 31 | WP7101P126-60 | Screw (Replaces: 400061-1) | - |
|
Immediately | $ 6.85 | |||
| 32 | 54531-7 | Tube, Drain | - |
|
- | ||||
| 33 | 65039-1 | Cap, Drain Tube | - |
|
- | ||||
| 34 | 67259-1 | Clip, Kickplate | - |
|
- | ||||
| 35 | 65275-10 | Screw, Tapping Plate | - |
|
- | ||||
| 36 | 67455-1 | Wheel Front | - |
|
- | ||||
| 37 | 67681-2 | Lever, Lock (right) | - |
|
- | ||||
| 37 | 67681-1 | Lever, Lock (left) | - |
|
- | ||||
| 38 | 67528-1 | Handle, Lock Lever | - |
|
- | ||||
| 39 | 406046-1 | Screw | - |
|
- | ||||
| 40 | 420007-400 | Washer | - |
|
- | ||||
| 41 | 67529-1 | Axle Wheel | - |
|
- | ||||
| 42 | 59101-1 | Tapping Plate, Wheel | - |
|
- | ||||
| 43 | 67530-1 | Bracket, Wheel | - |
|
- | ||||
| 44 | 62581-1 | Clip, Retaining Wheel (rear) | - |
|
- | ||||
| 45 | 29835-2 | Pin, Wheel | - |
|
- | ||||
| 46 | 60216-1 | Clip | - |
|
- | ||||
| 47 | 67455-2 | Wheel, Roller | - |
|
- | ||||
| 48 | 29835-2 | Pin, Wheel | - |
|
- | ||||
| 49 | 406083-1 | Screw, Wheel Adjustment | - |
|
- | ||||
| 49 | 24580-4 | Tip, Adjustment Screw | - |
|
- | ||||
| 50 | 67023-6 | Grill, Kickplate | - |
|
- | ||||
| 51 | 68989-1 | Seal, Top Tower | - |
|
- | ||||
| 52 | 69037-1 | Disc, Crank Cover | - |
|
- |
