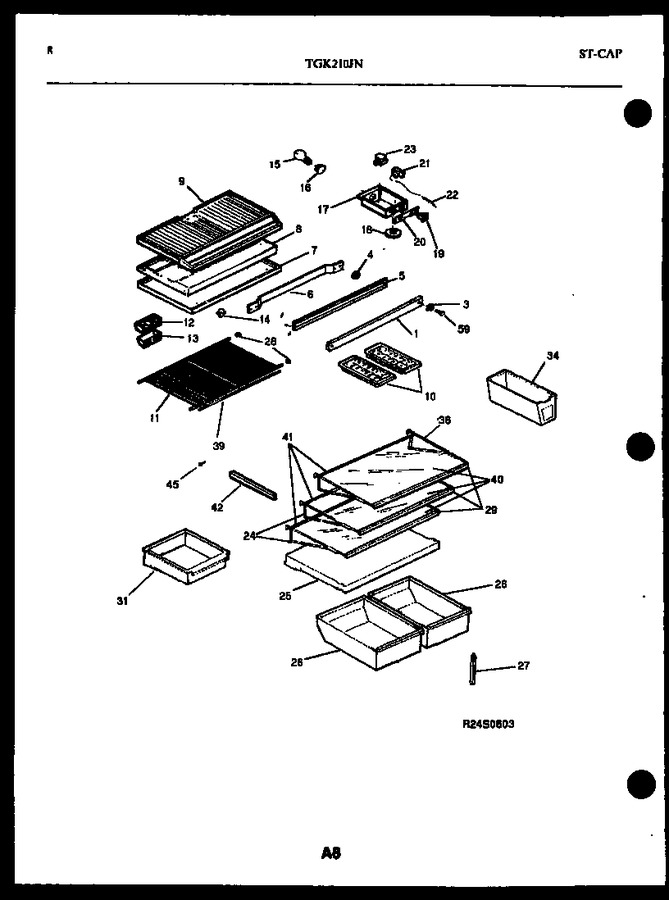

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200366		Mullion, White				$ 70.04
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	5303200464		Spacer, Mullion Mtg, (2)		Appelez-nous	-
5	5303210351		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	5303001651		Top Panel-refr, W/snap Bushing		Appelez-nous	-
8	5308013674		Divider-styrofoam		Appelez-nous	-
9	5303210641		Bottom Panel-freezer		Appelez-nous	-
10	5303001324		Tray-ice, Plastic		Appelez-nous	-
11	5303208517		Shelf-freezer		Appelez-nous	-
12	5308000071		Deflector-air		Appelez-nous	-
13	5303001546		Cover - Air Deflector		Appelez-nous	-
14	5309918806		Switch, Light			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp		Appelez-nous	-
16	5308000129		Socket-light/lamp				$ 62.16
17	5303015152		Box-control		Appelez-nous	-
18	5308010011		Knob-temp Control		Appelez-nous	-
19	5303001670		Switch-energy Saver		Appelez-nous	-
20	5303273167		Label-control Box		Appelez-nous	-
21	5303200810		Control-temperature				$ 126.87
22	5303916855		Sleeve-plastic Tube				$ 60.96
23	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
24	5303209276		Frame-full Shelf, Cantilever, (2)		Appelez-nous	-
25	5303007603		Cover-crisper Pan		Appelez-nous	-
26	5303273188		Pan-crisper, Lh		Appelez-nous	-
26	5303273145		Pan-crisper, Rh		Appelez-nous	-
17A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
7A	5303001380		Screw		Appelez-nous	-
7B	5303212518		Bushing, Snap-in, Plastic (non-illustrated)		Appelez-nous	-
8A	3001475		Wiring Harness, Control/divider (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
