SELECT A DIAGRAM

02 - Door Parts


03 - Door Parts


04 - Cabinet Parts


05 - Cabinet Parts


06 - Shelves And Supports


07 - Shelves And Supports


08 - Shelves And Supports


09 - System And Automatic Defrost Parts


10 - System And Automatic Defrost Parts

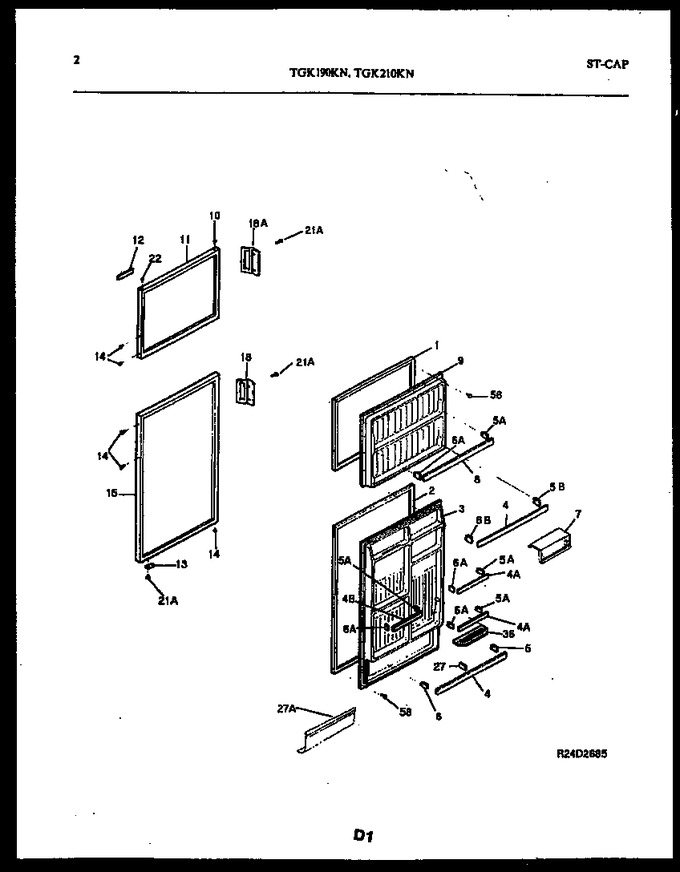

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5318680314		Gasket-frzr Door, Magnetic, White				$ 113.57
2	5303018792		Gasket-refr Door, Magnetic, White		Appelez-nous	-
3	5303206513		Panel-inner Door, Refr		Appelez-nous	-
4	5303206510		Rack-door, Full-width, Wide		Appelez-nous	-
5	5303206516		Support-door Rack, Rh		Appelez-nous	-
6	5303206517		Support-door Rack, Lh				$ 56.33
7	5303209211		Door-dairy		Appelez-nous	-
8	5303206511		Rack-door, Full-width, Narrow		Appelez-nous	-
9	5303206509		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303916906		Panel-frzr Door, White		Appelez-nous	-
12	5303273164		Nameplate Assy		Appelez-nous	-
13	5303212491		Door Stop, Refr		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
13A	5308000255		Door Stop, Frzr (non Illustrated)				$ 42.20
4A	3206191		Rack-door, Short, Narrow, (2)		Appelez-nous	-
4B	5303206515		Rack-door, Medium-width, Narrow		Appelez-nous	-
5A	3206165		Support-door Rack, Rh			Immediately	$ 8.19
5B	3206161		Support-door Rack, Rh		Appelez-nous	-
6A	3206166		Support-door Rack, Lh			Immediately	$ 9.93
6B	3206162		Support-door Rack, Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
